PART NO. 规格/编码 |
ITEM NO. 品名型号 |

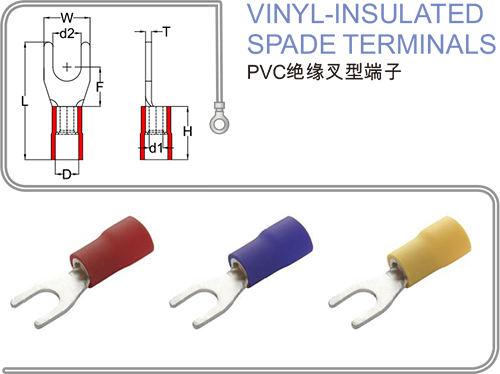

尺寸DIMENSIONS(mm) |
WIRE RANGE 电线范围 A .W.G.mm² |
|||||||
|
d 2 |
W |
F |
L |
H |
d 1 |
D |
T |
|||
|
VS1.25M3 |
VS1.25-3 |
3.2 |
5.7 |
6.50 |
21.20 |
10.0 |
1.7 |
4.2 |
0.7 |
22-16 A.W.G. 0.5-1.5 mm² |
|
VS1.25M3.5S |
VS1.25-3.5S |
3.7 |
||||||||
|
VS1.25M3.5M |
VS1.25-3.5M |
3.7 |
6.4 |
|||||||
|
VS1.25M4S |
VS1.25-4S |
4.3 |
6.4 |
|||||||
|
VS1.25M4M |
VS1.25-4M |
4.3 |
7.2 |
|||||||
|
VS1.25M4L |
VS1.25-4L |
4.3 |
8.1 |
|||||||
|
VS1.25M5S |
VS1.25-5S |
5.3 |
||||||||
|
VS1.25M5L |
VS1.25-5L |
5.3 |
9.5 |
|||||||
|
VS1.25M6S |
VS1.25-6S |
6.4 |
||||||||
|
VS1.25M6L |
VS1.25-6L |
6.4 |
12.0 |
|||||||
|
VS1.25M8 |
VS1.25-8 |
8.4 |
13.5 |
|||||||
|
VS2M3 |
VS2-3 |
3.2 |
5.7 |
11.00 |
27.20 |
10.0 |
2.3 |
4.7 |
0.8 |
16-14 A.W.G. 1.5-2.5mm² |
|
VS2M3.5S |
VS2-3.5S |
3.7 |
11.50 |
26.70 |
||||||
|
VS2M3.5L |
VS2-3.5L |
3.7 |
6.0 |
6.50 |
21.20 |
|||||
|
VS2M4S |
VS2-4S |
4.3 |
6.4 |
|||||||
|
VS2M4M |
VS2-4M |
4.3 |
7.2 |
|||||||
|
VS2M4L |
VS2-4L |
4.3 |
8.1 |
|||||||
|
VS2M5S |
VS2-5S |
5.3 |
||||||||
|
VS2M5L |
VS2-5L |
5.3 |
9.5 |
|||||||
|
VS2M6S |
VS2-6S |
6.4 |
||||||||
|
VS2M6L |
VS2-6L |
6.4 |
12.0 |
11.00 |
27.20 |
|||||
|
VS2M8 |
VS2-8 |
8.4 |
13.5 |
11.50 |
27.00 |
|||||
|
VS3.5M3.5 |
VS3.5-3.5 |
3.7 |
8.0 |
7.70 |
25.30 |
13.0 |
2.9 |
6.2 |
1.0 |
14-12 A.W.G. 2.5-4mm² |
|
VS3.5M4 |
VS3.5-4 |
4.3 |
||||||||
|
VS3.5M5 |
VS3.5-5 |
5.3 |
||||||||
|
VS3.5M6 |
VS3.5-6 |
8.4 |
12.0 |
9.10 |
28.50 |
|||||
|
VS3.5M8 |
VS3.5-8 |
8.4 |
14.0 |
11.50 |
30.70 |
|||||
|
VS5.5M3.5 |
VS5.5-3.5 |
3.7 |
8.3 |
7.00 |
25.5 |
13.0 |
3.4 |
6.5 |
1.0 |
12-10 A.W.G. 4-6mm² |
|
VS5.5M4S |
VS5.5-4S |
4.3 |
8.3 |
7.00 |
25.5 |
|||||
|
VS5.5M4L |
VS5.5-4L |
4.3 |
9.0 |
|||||||
|
VS5.5M5 |
VS5.5-5 |
5.3 |
||||||||
|
VS5.5M6S |
VS5.5-6S |
6.4 |
||||||||
|
VS5.5M6L |
VS5.5-6L |
6.4 |
12.0 |
12.00 |
31.7 |
|||||
|
VS5.5M8 |
VS5.5-8 |
8.4 |
14.0 |
11.50 |
30.7 |
|||||
|
VS8M4 |
VS8-4 |
4.3 |
9.0 |
7.60 |
28.3 |
16.0 |
4.5 |
8.0 |
1.2 |
8 A.W.G. 6-10mm² |
|
VS8M5 |
VS8-5 |
5.3 |
9.0 |
8.10 |
||||||
|
VS8M6 |
VS8-6 |
6.4 |
12.0 |
9.20 |
31.3 |
|||||
|
VS8M8 |
VS8-8 |
8.4 |
13.8 |
10.70 |
32.9 |
|||||
|
VS8M10 |
VS8-10 |
10.5 |
15.9 |
|||||||
|
VS14M4 |
VS14-4 |
4.3 |
9.0 |
9.50 |
36.5 |
21.5 |
5.8 |
11.0 |
1.4 |
6 A.W.G 10-16mm² |
|
VS14M5 |
VS14-5 |
5.3 |
||||||||
|
VS14M6 |
VS14-6 |
6.4 |
11.0 |
|||||||
|
VS14M8 |
VS14-8 |
8.4 |
13.8 |
10.70 |
39.5 |
|||||
|
VS14M10 |
VS14-10 |
10.5 |
15.9 |
|||||||
|
VS22M5 |
VS22-5 |
5.3 |
11.0 |
9.50 |
39.3 |
23.5 |
7.7 |
13.0 |
1.6 |
4 A.W.G. 16-25mm² |
|
VS22M6 |
VS22-6 |
6.4 |
||||||||
|
VS22M8 |
VS22-8 |
8.4 |
16.5 |
13.50 |
45.0 |
|||||
