PART NO. 规格/编码 |
ITEM NO. 品名型号 |

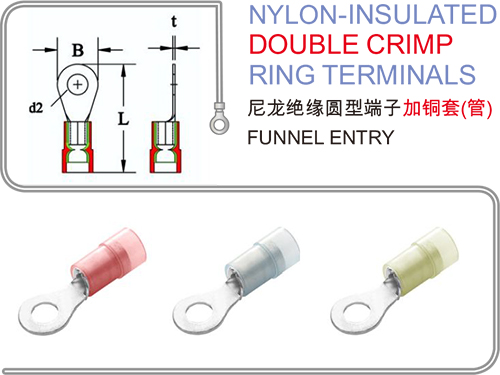

尺寸DIMENSIONS(mm) |
STUD SIZE |
WIRE RANGE 电线范围 A .W.G.mm² |
|||
|
B |
d 2 |
L |
t |
||||
|
AER1.25M3D-TR |
AER1.25-3D-TR |
5.50 |
3.20 |
17.5 |
0.75 |
#4 |
22-16A.W.G. 0.5-1.5mm² |
|
AER1.25M3.5D-TR |
AER1.25-3.5D-TR |
5.50 |
3.70 |
#6 |
|||
|
AER1.25M3.5LD-TR |
AER1.25-3.5LD-TR |
6.60 |
3.70 |
20.4 |
#6 |
||
|
AER1.25M4D-TR |
AER1.25-4D-TR |
8.00 |
4.30 |
21.7 |
#8 |
||
|
AER1.25M4MD-TR |
AER1.25-4MD-TR |
6.60 |
4.30 |
20.4 |
#8 |
||
|
AER1.25M5D-TR |
AER1.25-5D-TR |
8.00 |
5.30 |
21.7 |
#10 |
||
|
AER1.25M6D-TR |
AER1.25-6D-TR |
11.60 |
6.40 |
27.6 |
1/4 |
||
|
AER1.25M8D-TR |
AER1.25-8D-TR |
11.60 |
8.40 |
5/16 |
|||
|
AER1.25M10D-TR |
AER1.25-10D-TR |
13.70 |
10.50 |
31.5 |
3/8 |
||
|
AER1.25M12D-TR |
AER1.25-12D-TR |
19.00 |
13.00 |
35.0 |
1/2 |
||
|
AER2M3MD-TR |
AER2-3MD-TR |
6.60 |
3.20 |
20.6 |
0.80 |
#4 |
16-14A.W.G. 1.5-2.5mm² |
|
AER2M3D-TR |
AER2-3D-TR |
8.50 |
3.20 |
23.0 |
#4 |
||
|
AER2M3.5D-TR |
AER2-3.5D-TR |
6.60 |
3.70 |
20.6 |
#6 |
||
|
AER2M3.5LD-TR |
AER2-3.5LD-TR |
8.50 |
3.70 |
23.0 |
#6 |
||
|
AER2M4D-TR |
AER2-4D-TR |
8.50 |
4.30 |
#8 |
|||
|
AER2M4MD-TR |
AER2-4MD-TR |
6.60 |
4.30 |
20.8 |
#8 |
||
|
AER2M5MD-TR |
AER2-5MD-TR |
8.50 |
5.30 |
23.0 |
0.8 |
#10 |
|
|
AER2M5D-TR |
AER2-5D-TR |
9.50 |
5.30 |
#10 |
|||
|
AER2M6D-TR |
AER2-6D-TR |
12.00 |
6.40 |
28.1 |
1/4 |
||
|
AER2M8D-TR |
AER2-8D-TR |
12.00 |
8.40 |
5/16 |
|||
|
AER2M10D-TR |
AER2-10D-TR |
13.70 |
10.50 |
31.9 |
3/8 |
||
|
AER2M12D-TR |
AER2-12D-TR |
19.00 |
13.00 |
35.5 |
1/2 |
||
|
AER5.5M3D-TR |
AER5.5-3D-TR |
9.50 |
3.20 |
26.7 |
1.00 |
#4 |
12-10A.W.G. 4-6mm² |
|
AER5.5M3.5D-TR |
AER5.5-3.5D-TR |
9.50 |
3.70 |
#6 |
|||
|
AER5.5M4SD-TR |
AER5.5-4SD-TR |
7.40 |
4.30 |
26.0 |
#8 |
||
|
AER5.5M4D-TR |
AER5.5-4D-TR |
9.50 |
4.30 |
26.7 |
#8 |
||
|
AER5.5M5D-TR |
AER5.5-5D-TR |
9.50 |
5.30 |
#10 |
|||
|
AER5.5M5SD-TR |
AER5.5-5SD-TR |
7.40 |
5.30 |
26.0 |
#10 |
||
|
AER5.5M6D-TR |
AER5.5-6D-TR |
12.00 |
6.40 |
32.7 |
1/4 |
||
|
AER5.5M8D-TR |
AER5.5-8D-TR |
15.00 |
8.40 |
34.9 |
5/16 |
||
|
AER5.5M10D-TR |
AER5.5-10D-TR |
15.00 |
10.50 |
3/8 |
|||
|
AER5.5M12D-TR |
AER5.5-12D-TR |
19.20 |
13.00 |
39.6 |
1/2 |
||
