PART NO. 规格/编码 |
ITEM NO. 品名型号 |

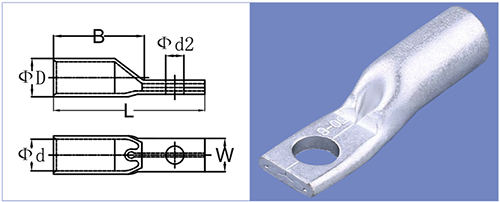

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
W |
L |
ΦD |
Φd |
B |
||
|
TPE50M8 |
TPE50-8 |
8.5 |
15 |
50 |
12.6 |
9.8 |
32 |
|
TPE50M10 |
TPE50-10 |
10.5 |
15 |
50 |
12.6 |
9.8 |
32 |
|
TPE70M8 |
TPE70-8 |
8.5 |
15 |
55 |
14.7 |
11.5 |
35 |
|
TPE70M10 |
TPE70-10 |
10.5 |
15 |
55 |
14.7 |
11.5 |
35 |
|
TPE95M8 |
TPE95-8 |
8.5 |
15 |
60 |
16.9 |
13.5 |
39 |
|
TPE95M10 |
TPE95-10 |
10.5 |
15 |
60 |
16.9 |
13.5 |
39 |
|
TPE120M8 |
TPE120-8 |
8.5 |
21 |
65 |
19.9 |
15.6 |
44 |
|
TPE120M10 |
TPE120-10 |
10.5 |
21 |
65 |
19.9 |
15.6 |
44 |
|
TPE150M10 |
TPE150-10 |
10.5 |
21 |
72 |
20.9 |
16.5 |
47 |
|
TPE150M12 |
TPE150-12 |
12.5 |
21 |
72 |
20.9 |
16.5 |
47 |
|
TPE185M10 |
TPE185-10 |
10.5 |
26 |
75 |
23.7 |
18.8 |
50 |
|
TPE185M12 |
TPE185-12 |
12.5 |
26 |
75 |
23.7 |
18.8 |
50 |
|
TPE240M10 |
TPE240-10 |
10.5 |
26 |
85 |
26.2 |
21.2 |
60 |
|
TPE240M12 |
TPE240-12 |
12.5 |
26 |
85 |
26.2 |
21.2 |
60 |
