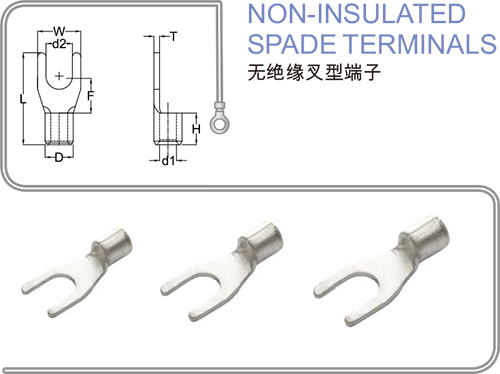

PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
WIRE RANGE 电线范围 A .W.G.mm² |
|||||||
|
d 2 |
W |
F |
L |
H |
d 1 |
D |
T |
|||
|
S0.5M2 |
S0.5-2 |
2.2 |
5.0 |
4.50 |
12.5 |
4.0 |
1.2 |
2.2 |
0.5 |
26-22 A.W.G. 0.2-0.5mm² |
|
S0.5M3.2 |
S0.5-3.2 |
3.2 |
||||||||
|
S0.5M3.7 |
S0.5-3.7 |
3.7 |
6.0 |
7.00 |
15.7 |
|||||
|
S0.5M4 |
S0.5-4 |
4.3 |
6.4 |
|||||||
|
S0.5M5 |
S0.5-5 |
5.3 |
8.0 |
|||||||
|
S1.25M3 |
S1.25-3 |
3.2 |
5.7 |
6.50 |
16.00 |
4.8 |
1.8 |
3.4 |
0.7 |
22-16 A.W.G. 0.5-1.5 mm2 |
|
S1.25M3.5S |
S1.25-3.5S |
3.7 |
||||||||
|
S1.25M3.5L |
S1.25-3.5L |
3.7 |
6.4 |
|||||||
|
S1.25M3.7S |
S1.25-3.7S |
3.7 |
5.7 |
|||||||
|
S1.25M3.7L |
S1.25-3.7L |
3.7 |
6.4 |
|||||||
|
S1.25M3.7LL |
S1.25-3.7LL |
3.7 |
7.2 |
|||||||
|
S1.25M4S |
S1.25-4S |
4.3 |
6.4 |
|||||||
|
S1.25M4M |
S1.25-4M |
4.3 |
7.2 |
|||||||
|
S1.25M4L |
S1.25-4L |
4.3 |
8.1 |
|||||||
|
S1.25M5S |
S1.25-5S |
5.3 |
||||||||
|
S1.25M5L |
S1.25-5L |
5.3 |
9.5 |
|||||||
|
S1.25M6S |
S1.25-6S |
6.4 |
||||||||
|
S1.25M6L |
S1.25-6L |
6.4 |
12.0 |
|||||||
|
S1.25M8S |
S1.25-8S |
8.4 |
12.0 |
|||||||
|
S2M3 |
S2-3 |
3.2 |
5.7 |
11.00 |
22.00 |
4.8 |
2.4 |
4.0 |
0.8 |
16-14A.W.G. 1.5-2.5mm² |
|
S2M3.5S |
S2-3.5S |
3.7 |
11.00 |
22.00 |
||||||
|
S2M3.5L |
S2-3.5L |
3.7 |
6.0 |
6.50 |
16.00 |
|||||
|
S2M3.7S |
S2-3.7S |
3.7 |
5.7 |
|||||||
|
S2M3.7L |
S2-3.7L |
3.7 |
6.0 |
|||||||
|
S2M3.7LL |
S2-3.7LL |
3.7 |
7.2 |
|||||||
|
S2M4S |
S2-4S |
4.3 |
6.4 |
|||||||
|
S2M4M |
S2-4M |
4.3 |
7.2 |
|||||||
|
S2M4L |
S2-4L |
4.3 |
8.1 |
|||||||
|
S2M5S |
S2-5S |
5.3 |
||||||||
|
S2M5L |
S2-5L |
5.3 |
9.5 |
|||||||
|
S2M6S |
S2-6S |
6.4 |
||||||||
|
S2M6L |
S2-6L |
6.4 |
12.0 |
11.00 |
22.00 |
|||||
|
S2M8S |
S2-8S |
8.4 |
||||||||
|
S2M8 |
S2-8 |
8.4 |
13.5 |
11.50 |
21.80 |
|||||
|
S3.5M3.7 |
S3.5-3.7 |
3.7 |
8.0 |
7.70 |
18.30 |
6.0 |
3.0 |
5.0 |
1.0 |
14-12 A.W.G. 2.5-4mm² |
|
S3.5M4 |
S3.5-4 |
4.3 |
||||||||
|
S3.5M5 |
S3.5-5 |
5.3 |
||||||||
|
S3.5M6 |
S3.5-6 |
8.4 |
12.0 |
9.10 |
21.50 |
|||||
|
S3.5M8 |
S3.5-8 |
8.4 |
14.0 |
11.50 |
23.70 |
|||||
|
S3.5M10 |
S3.5-10 |
10.5 |
17.5 |
12.50 |
26.50 |
|||||
|
S5.5M3.5 |
S5.5-3.5 |
3.7 |
8.3 |
7.00 |
18.50 |
6.0 |
3.5 |
5.5 |
1.0 |
12-10 A.W.G. 4-6mm² |
|
S5.5M3.7S |
S5.5-3.7S |
3.7 |
7.2 |
7.50 |
17.40 |
|||||
|
S5.5M3.7 |
S5.5-3.7 |
3.7 |
8.3 |
7.00 |
18.50 |
|||||
|
S5.5M4SS |
S5.5-4SS |
4.3 |
7.2 |
7.50 |
17.40 |
|||||
|
S5.5M4S |
S5.5-4S |
4.3 |
8.3 |
7.00 |
18.50 |
|||||
|
S5.5M4L |
S5.5-4L |
4.3 |
9.0 |
|||||||
|
S5.5M5 |
S5.5-5 |
5.3 |
||||||||
|
S5.5M6S |
S5.5-6S |
6.4 |
||||||||
|
S5.5M6L |
S5.5-6L |
6.4 |
12.0 |
12.00 |
24.70 |
|||||
|
S5.5M8 |
S5.5-8 |
8.4 |
14.0 |
11.50 |
23.70 |
|||||
|
S5.5M10 |
S5.5-10 |
10.5 |
17.5 |
12.50 |
26.50 |
|||||
|
S8M4 |
S8-4 |
4.3 |
9.0 |
7.60 |
20.80 |
8.5 |
4.8 |
7.2 |
1.2 |
8 A.W.G. 6-10mm² |
|
S8M5 |
S8-5 |
5.3 |
9.0 |
8.10 |
||||||
|
S8M6 |
S8-6 |
6.4 |
12.0 |
9.20 |
23.80 |
|||||
|
S8M8 |
S8-8 |
8.4 |
13.8 |
10.70 |
25.40 |
|||||
|
S8M10 |
S8-10 |
10.5 |
15.9 |
|||||||
|
S14M4 |
S14-4 |
4.3 |
9.0 |
9.50 |
25.50 |
10.5 |
6.0 |
9.0 |
1.4 |
6 A.W.G 10-16mm² |
|
S14M5 |
S14-5 |
5.3 |
||||||||
|
S14M6 |
S14-6 |
6.4 |
11.0 |
|||||||
|
S14M8 |
S14-8 |
8.4 |
13.8 |
10.70 |
28.50 |
|||||
|
S14M10 |
S14-10 |
10.5 |
15.9 |
|||||||
|
S22M5 |
S22-5 |
5.3 |
11.0 |
9.50 |
27.80 |
12.0 |
8.1 |
11.5 |
1.8 |
4 A.W.G. 16-25mm² |
|
S22M6 |
S22-6 |
6.4 |
||||||||
|
S22M8 |
S22-8 |
8.4 |
16.5 |
13.50 |
33.50 |
|||||
|
S22M10 |
S22-10 |
10.5 |
||||||||
