PART NO. 规格/编码 |
ITEM NO. 品名型号 |

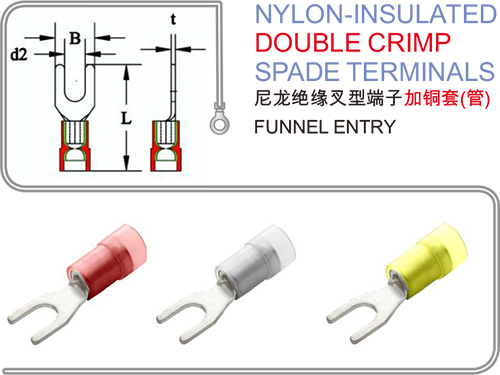

尺寸DIMENSIONS(mm) |
STUD SIZE |
WIRE RANGE 电线范围 A .W.G.mm² |
|||
|
B |
d 2 |
L |
t |
||||
|
AES1.25M3D-TR |
AES1.25-3D-TR |
5.70 |
3.20 |
22.00 |
0.75 |
#4 |
22-16 A.W.G. 0.5-1.5 mm² |
|
AES1.25M3.5D-TR |
AES1.25-3.5D-TR |
6.20 |
3.70 |
#6 |
|||
|
AES1.25M3.5D-TR |
AES1.25-3.5SD-TR |
5.70 |
3.70 |
#6 |
|||
|
AES1.25M4D-TR |
AES1.25-4D-TR |
7.20 |
4.30 |
#8 |
|||
|
AES1.25M4SD-TR |
AES1.25-4SD-TR |
6.40 |
4.30 |
#8 |
|||
|
AES1.25M5D-TR |
AES1.25-5D-TR |
8.00 |
5.30 |
#10 |
|||
|
AES1.25M6D-TR |
AES1.25-6D-TR |
10.70 |
6.40 |
23.00 |
1/4 |
||
|
AES1.25M6SD-TR |
AES1.25-6SD-TR |
9.30 |
6.40 |
1/4 |
|||
|
AES1.25M8D-TR |
AES1.25-8D-TR |
13.50 |
8.40 |
28.00 |
5/16 |
||
|
AES1.25M10D-TR |
AES1.25-10D-TR |
15.00 |
10.50 |
28.50 |
3/8 |
||
|
AES2M3D-TR |
AES2-3D-TR |
5.70 |
3.20 |
22.00 |
0.80 |
#4 |
16-14 A.W.G. 1.5-2.5 mm² |
|
AES2M3.5D-TR |
AES2-3.5D-TR |
6.20 |
3.70 |
#6 |
|||
|
AES2M3.5SD-TR |
AES2-3.5SD-TR |
5.70 |
3.70 |
#6 |
|||
|
AES2M4D-TR |
AES2-4D-TR |
7.20 |
4.30 |
#8 |
|||
|
AES2M4SD-TR |
AES2-4SD-TR |
6.40 |
4.30 |
#8 |
|||
|
AES2M5D-TR |
AES2-5D-TR |
8.00 |
5.30 |
#10 |
|||
|
AES2M6D-TR |
AES2-6D-TR |
10.70 |
6.40 |
23.00 |
1/4 |
||
|
AES2M6SD-TR |
AES2-6SD-TR |
9.30 |
6.40 |
1/4 |
|||
|
AES2M8D-TR |
AES2-8D-TR |
13.50 |
8.40 |
28.50 |
5/16 |
||
|
AES5.5M3D-TR |
AES5.5-3D-TR |
7.30 |
3.20 |
26.70 |
1.00 |
#4 |
12-10 A.W.G. 4-6 mm² |
|
AES5.5M3.5D-TR |
AES5.5-3.5D-TR |
8.10 |
3.70 |
#6 |
|||
|
AES5.5M3.5SD-TR |
AES5.5-3.5SD-TR |
6.30 |
3.70 |
#6 |
|||
|
AES5.5M4D-TR |
AES5.5-4D-TR |
8.20 |
4.30 |
#8 |
|||
|
AES5.5M4SD-TR |
AES5.5-4SD-TR |
6.30 |
4.20 |
#8 |
|||
|
AES5.5M5D-TR |
AES5.5-5D-TR |
9.00 |
5.30 |
#10 |
|||
|
AES5.5M6D-TR |
AES5.5-6D-TR |
12.00 |
6.40 |
30.70 |
1/4 |
||
|
AES5.5M6SD-TR |
AES5.5-6SD-TR |
9.00 |
6.40 |
1/4 |
|||
|
AES5.5M8D-TR |
AES5.5-8D-TR |
13.50 |
8.40 |
32.60 |
5/16 |
||
