PART NO. 规格/编码 |
ITEM NO. 品名型号 |

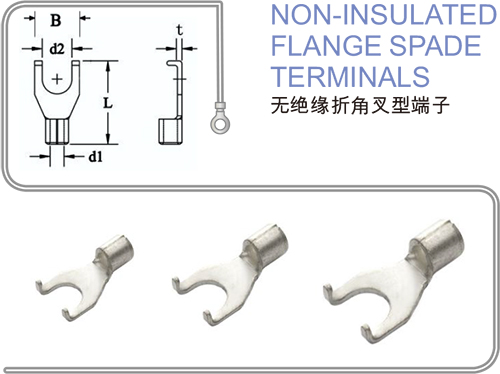

尺寸DIMENSIONS(mm) |
STUD SIZE |
WIRE RANGE 电线范围 A .W.G.mm² |
||||
|
d 1 |
d 2 |
B |
L |
t |
||||
|
FS1.25M3B |
FS1.25-3B |
1.90 |
3.2 |
5.7 |
14.6 |
0.75 |
#4 |
22-16 A.W.G. 0.5-1.5 mm² |
|
FS1.25M3.5B |
FS1.25-3.5B |
3.7 |
6.2 |
#6 |
||||
|
FS1.25M3.5SB |
FS1.25-3.5SB |
3.7 |
5.7 |
#6 |
||||
|
FS1.25M4B |
FS1.25-4B |
4.3 |
7.2 |
#8 |
||||
|
FS1.25M4SB |
FS1.25-4SB |
4.3 |
6.4 |
#8 |
||||
|
FS1.25M5B |
FS1.25-5B |
5.3 |
8.0 |
#10 |
||||
|
FS1.25M6B |
FS1.25-6B |
6.4 |
10.7 |
15.6 |
1/4 |
|||
|
FS1.25M8B |
FS1.25-8B |
8.4 |
13.5 |
20.7 |
5/16 |
|||
|
FS2M3B |
FS2-3B |
2.50 |
3.2 |
5.7 |
14.9 |
0.80 |
#4 |
16-14 A.W.G. 1.5-2.5 mm² |
|
FS2M3.5B |
FS2-3.5B |
3.7 |
6.2 |
#6 |
||||
|
FS2M3.5SB |
FS2-3.5SB |
3.7 |
5.7 |
#6 |
||||
|
FS2M4B |
FS2-4B |
4.3 |
7.2 |
#8 |
||||
|
FS2M4SB |
FS2-4SB |
4.3 |
6.4 |
#8 |
||||
|
FS2M5B |
FS2-5B |
5.3 |
8.0 |
#10 |
||||
|
FS2M6B |
FS2-6B |
6.4 |
10.7 |
15.9 |
1/4 |
|||
|
FS2M8B |
FS2-8B |
8.4 |
13.5 |
21.0 |
5/16 |
|||
|
FS5.5M3B |
FS5.5-3B |
3.60 |
3.2 |
7.3 |
18.3 |
1.00 |
#4 |
12-10 A.W.G. 4-6 mm² |
|
FS5.5M3.5B |
FS5.5-3.5B |
3.7 |
8.1 |
#6 |
||||
|
FS5.5M4B |
FS5.5-4B |
4.3 |
8.2 |
#8 |
||||
|
FS5.5M4SB |
FS5.5-4SB |
4.2 |
6.3 |
#8 |
||||
|
FS5.5M5B |
FS5.5-5B |
5.3 |
9.0 |
#10 |
||||
|
FS5.5M6B |
FS5.5-6B |
6.4 |
12.0 |
22.1 |
1/4 |
|||
|
FS5.5M8B |
FS5.5-8B |
8.4 |
13.5 |
23.8 |
5/16 |
|||
