PART NO. 规格/编码 |
ITEM NO. 品名型号 |

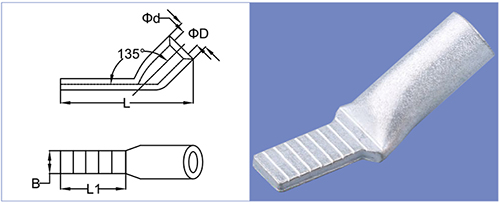

尺寸DIMENSIONS(mm) |
||||
|
B |
L |
L 1 |
ΦD |
Φd |
||
|
C45N1.5 |
C45N1.5 |
4.7 |
22 |
10 |
3.5 |
2.1 |
|
C45N2 |
C45N2 |
5.5 |
22 |
10 |
4 |
2.6 |
|
C45N4 |
C45N4 |
6.7 |
22 |
10 |
4.8 |
3.4 |
|
C45N6 |
C45N6 |
7 |
27 |
10 |
5.9 |
4 |
|
C45N10 |
C45N10 |
7 |
33 |
13 |
6.7 |
5.1 |
|
C45N16 |
C45N16 |
7 |
36 |
13 |
8.1 |
6 |
|
C45N25 |
C45N25 |
7 |
37 |
13 |
9 |
7 |
|
C45N35 |
C45N35 |
7 |
39 |
13 |
10.6 |
8.3 |
|
C45N50 |
C45N50 |
7 |
43.5 |
13 |
12.5 |
9.8 |
|
C45N70 |
C45N70 |
7 |
47 |
13 |
14.7 |
11.9 |
