PART NO. 规格/编码 |
ITEM NO. 品名型号 |

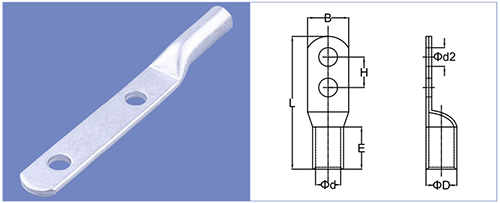

尺寸DIMENSIONS(mm) |
||||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
H |
||
|
CL14-2HM6 |
CL14-2H-6 |
6.4 |
13 |
117.5 |
8.8 |
5.8 |
28.5 |
45 |
|
CL22-2HM8 |
CL22-2H-8 |
8.4 |
16 |
119.2 |
11.3 |
7.7 |
28.5 |
|
|
CL38-2HM10 |
CL38-2H-10 |
10.5 |
18.3 |
120 |
12.4 |
9.8 |
31.7 |
|
|
CL38-2HM12 |
CL38-2H-12 |
13 |
18.3 |
120 |
12.4 |
9.8 |
31.7 |
|
|
CL60-2HM10 |
CL60-2H-10 |
10.5 |
20.5 |
130 |
14 |
11 |
40 |
|
|
CL60-2HM12 |
CL60-2H-12 |
13 |
20.5 |
130 |
14 |
11 |
40 |
|
|
CL70-2HM10 |
CL70-2H-10 |
10.5 |
21.4 |
130 |
15 |
12 |
40 |
|
|
CL70-2HM12 |
CL70-2H-12 |
13 |
21.4 |
130 |
15 |
12 |
40 |
|
|
CL80-2HM12 |
CL80-2H-12 |
13 |
23.2 |
130 |
16 |
13 |
40 |
|
|
CL100-2HM12 |
CL100-2H-12 |
13 |
26 |
132 |
18 |
14 |
42 |
|
|
CL125-2HM12 |
CL125-2H-12 |
13 |
29 |
135 |
20 |
16 |
42 |
|
|
CL150-2HM12 |
CL150-2H-12 |
13 |
31.5 |
150 |
22 |
17 |
50 |
|
|
CL180-2HM12 |
CL180-2H-12 |
13 |
33 |
150 |
23 |
18.2 |
50 |
|
|
CL200-2HM12 |
CL200-2H-12 |
13 |
37 |
150 |
26 |
20 |
52.5 |
|
|
CL250-2HM12 |
CL250-2H-12 |
13 |
40 |
150 |
28 |
22 |
50 |
|
|
CL325-2HM12 |
CL325-2H-12 |
13 |
46 |
180 |
32 |
25 |
68 |
|
|
CL400-2HM12 |
CL400-2H-12 |
13 |
54 |
180 |
37 |
30 |
60 |
|
|
CL500-2HM12 |
CL500-2H-12 |
13 |
57.5 |
180 |
40 |
31 |
60 |
|
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
||||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
H |
||
|
B-CL14-2HM6 |
B-CL14-2H-6 |
6.4 |
13 |
117.5 |
8.3 |
5.8 |
28.5 |
45 |
|
B-CL22-2HM8 |
B-CL22-2H-8 |
8.4 |
16 |
119.2 |
10.7 |
7.7 |
28.5 |
|
|
B-CL38-2HM10 |
B-CL38-2H-10 |
10.5 |
17.5 |
120 |
11.9 |
9.8 |
31.7 |
|
|
B-CL38-2HM12 |
B-CL38-2H-12 |
13 |
17.5 |
120 |
11.9 |
9.8 |
31.7 |
|
|
B-CL60-2HM10 |
B-CL60-2H-10 |
10.5 |
20.5 |
130 |
13.5 |
11 |
40 |
|
|
B-CL60-2HM12 |
B-CL60-2H-12 |
13 |
20.5 |
130 |
13.5 |
11 |
40 |
|
|
B-CL70-2HM10 |
B-CL70-2H-10 |
10.5 |
21.4 |
130 |
14.5 |
12 |
40 |
|
|
B-CL70-2HM12 |
B-CL70-2H-12 |
13 |
21.4 |
130 |
14.5 |
12 |
40 |
|
|
B-CL80-2HM12 |
B-CL80-2H-12 |
13 |
23.2 |
130 |
15.5 |
13 |
42 |
|
|
B-CL100-2HM12 |
B-CL100-2H-12 |
13 |
25 |
132 |
17.3 |
14 |
42 |
|
|
B-CL125-2HM12 |
B-CL125-2H-12 |
13 |
28 |
135 |
19.3 |
16 |
42 |
|
|
B-CL150-2HM12 |
B-CL150-2H-12 |
13 |
31 |
150 |
21.1 |
17 |
50 |
|
|
B-CL180-2HM12 |
B-CL180-2H-12 |
13 |
33 |
150 |
22.1 |
18.2 |
50 |
|
|
B-CL200-2HM12 |
B-CL200-2H-12 |
13 |
36 |
150 |
24.9 |
20 |
50 |
|
|
B-CL250-2HM12 |
B-CL250-2H-12 |
13 |
39 |
150 |
26.9 |
22 |
50 |
|
|
B-CL325-2HM12 |
B-CL325-2H-12 |
13 |
45 |
180 |
30.7 |
25 |
68 |
|
|
B-CL400-2HM12 |
B-CL400-2H-12 |
13 |
54 |
180 |
35.7 |
30 |
60 |
|
|
B-CL500-2HM12 |
B-CL500-2H-12 |
13 |
56 |
180 |
38.4 |
31 |
60 |
|
