PART NO. 规格/编码 |
ITEM NO. 品名型号 |

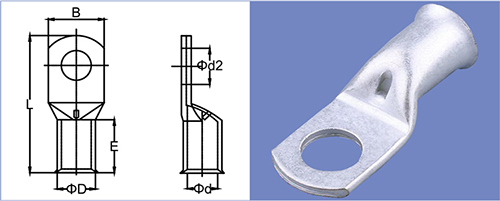

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
GC10M4 |
GC10-4 |
4.3 |
11 |
30 |
6.6 |
4.5 |
13 |
|
GC10M5 |
GC10-5 |
5.3 |
11 |
30 |
|||
|
GC10M6 |
GC10-6 |
6.5 |
11 |
30 |
|||
|
GC10M8 |
GC10-8 |
8.3 |
12.5 |
30 |
|||
|
GC10M10 |
GC10-10 |
10.3 |
16 |
34.1 |
6.9 |
||
|
GC10M12 |
GC10-12 |
12.7 |
18 |
34.1 |
6.9 |
12 |
|
|
GC16M5 |
GC16-5 |
5.3 |
11 |
30.7 |
7.5 |
5.5 |
14 |
|
GC16M6 |
GC16-6 |
6.5 |
11 |
30.7 |
|||
|
GC16M8 |
GC16-8 |
8.3 |
12.5 |
30.7 |
13 |
||
|
GC16M10 |
GC16-10 |
10.3 |
16 |
35.9 |
14 |
||
|
GC16M12 |
GC16-12 |
12.7 |
18 |
35.9 |
8.1 |
13 |
|
|
GC25M5 |
GC25-5 |
5.3 |
13 |
32.2 |
9.1 |
6.7 |
13 |
|
GC25M6 |
GC25-6 |
6.5 |
13 |
32.2 |
|||
|
GC25M8 |
GC25-8 |
8.3 |
13 |
32.2 |
|||
|
GC25M10 |
GC25-10 |
10.3 |
16 |
36.9 |
14 |
||
|
GC25M12 |
GC25-12 |
12.7 |
18 |
36.9 |
13 |
||
|
GC25M14 |
GC25-14 |
14.8 |
20 |
38.9 |
|||
|
GC35M5 |
GC35-5 |
5.3 |
16 |
37.6 |
11 |
8.6 |
16 |
|
GC35M6 |
GC35-6 |
6.5 |
16 |
37.6 |
|||
|
GC35M8 |
GC35-8 |
8.3 |
16 |
37.6 |
|||
|
GC35M10 |
GC35-10 |
10.3 |
17 |
41.5 |
|||
|
GC35M12 |
GC35-12 |
12.7 |
18 |
41.5 |
|||
|
GC35M14 |
GC35-14 |
14.8 |
20 |
43.5 |
|||
|
GC35M16 |
GC35-16 |
16.5 |
23 |
45.5 |
|||
|
GC50M5 |
GC50-5 |
5.3 |
18 |
41 |
12.4 |
9.5 |
17 |
|
GC50M6 |
GC50-6 |
6.5 |
18 |
41 |
|||
|
GC50M8 |
GC50-8 |
8.3 |
18 |
41 |
|||
|
GC50M10 |
GC50-10 |
10.3 |
18 |
44 |
|||
|
GC50M12 |
GC50-12 |
12.7 |
19 |
44 |
|||
|
GC50M14 |
GC50-14 |
14.8 |
21 |
52.8 |
19 |
||
|
GC50M16 |
GC50-16 |
16.5 |
23 |
52.8 |
|||
|
GC70M5 |
GC70-5 |
5.3 |
22 |
52.4 |
15 |
12 |
21.5 |
|
GC70M6 |
GC70-6 |
6.3 |
22 |
52.4 |
|||
|
GC70M8 |
GC70-8 |
8.3 |
22 |
52.4 |
|||
|
GC70M10 |
GC70-10 |
10.3 |
22 |
52.4 |
|||
|
GC70M12 |
GC70-12 |
12.7 |
22 |
52.4 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
GC70M14 |
GC70-14 |
14.8 |
22 |
55 |
15 |
12 |
21.5 |
|
GC70M16 |
GC70-16 |
16.5 |
24 |
55 |
20 |
||
|
GC95M8 |
GC95-8 |
8.3 |
25 |
54.7 |
17 |
13.4 |
22.5 |
|
GC95M10 |
GC95-10 |
10.3 |
25 |
54.7 |
|||
|
GC95M12 |
GC95-12 |
12.7 |
25 |
54.7 |
|||
|
GC95M14 |
GC95-14 |
14.8 |
25 |
58.3 |
|||
|
GC95M16 |
GC95-16 |
16.5 |
25 |
58.3 |
|||
|
GC120M8 |
GC120-8 |
8.3 |
27.5 |
60 |
19 |
15 |
23 |
|
GC120M10 |
GC120-10 |
10.3 |
27.5 |
60 |
|||
|
GC120M12 |
GC120-12 |
12.7 |
27.5 |
60 |
|||
|
GC120M14 |
GC120-14 |
14.8 |
27.5 |
64 |
|||
|
GC120M16 |
GC120-16 |
16.5 |
27.5 |
64 |
|||
|
GC150M10 |
GC150-10 |
10.3 |
30.5 |
67 |
21.2 |
16.5 |
27 |
|
GC150M12 |
GC150-12 |
12.7 |
30.5 |
67 |
|||
|
GC150M14 |
GC150-14 |
14.8 |
30.5 |
67 |
|||
|
GC150M16 |
GC150-16 |
16.5 |
30.5 |
71.4 |
|||
|
GC150M20 |
GC150-20 |
20.9 |
30.5 |
71.4 |
|||
|
GC185M10 |
GC185-10 |
10.3 |
34 |
73 |
23 |
19 |
30 |
|
GC185M12 |
GC185-12 |
12.7 |
34 |
73 |
|||
|
GC185M14 |
GC185-14 |
14.8 |
34 |
73 |
|||
|
GC185M16 |
GC185-16 |
16.5 |
34 |
76.2 |
|||
|
GC185M20 |
GC185-20 |
20.9 |
34 |
76.2 |
|||
|
GC240M10 |
GC240-10 |
10.3 |
38.6 |
91.4 |
26.5 |
21 |
38 |
|
GC240M12 |
GC240-12 |
12.7 |
38.6 |
91.4 |
|||
|
GC240M14 |
GC240-14 |
14.8 |
38.6 |
91.4 |
|||
|
GC240M16 |
GC240-16 |
16.5 |
38.6 |
91.4 |
|||
|
GC240M20 |
GC240-20 |
20.9 |
38.6 |
91.4 |
|||
|
GC300M12 |
GC300-12 |
12.7 |
43.8 |
98 |
30 |
24.5 |
42 |
|
GC300M14 |
GC300-14 |
14.8 |
43.8 |
98 |
|||
|
GC300M16 |
GC300-16 |
16.5 |
43.8 |
98 |
|||
|
GC300M20 |
GC300-20 |
20.9 |
43.8 |
98 |
|||
|
GC400M12 |
GC400-12 |
12.7 |
50 |
104 |
35 |
27 |
44 |
|
GC400M14 |
GC400-14 |
14.8 |
50 |
104 |
|||
|
GC400M16 |
GC400-16 |
16.5 |
50 |
104 |
|||
|
GC400M20 |
GC400-20 |
20.9 |
50 |
104 |
|||
|
|
|||||||
