产品介绍：LYF铜管端子
该产品亦称冷压冷压接线端子、端头、街头、线耳、接线鼻，广泛应用于国内外电力开关控制柜、变压器、电力电器、线束制造、轨道交通、通讯、船舶、航天、航天、光伏、风电、新能源机车、充电桩等行业和领域
产品特点：
·采用99.9%高纯度紫铜，极大降低产品的阻抗，提高产品的导电性能
·15年生产经验，优秀做工，产品外观规整无毛刺
·表面镀锡处理，耐磨防腐抗氧化（可根据客户需求镀其他材质）
·支持加工定制/订制
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |

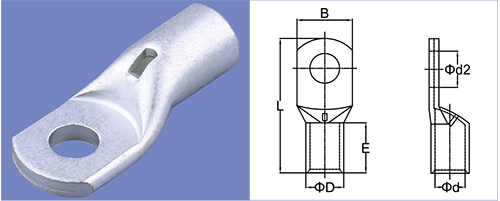

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
LYF10M5 |
LYF10-5 |
5.3 |
11.5 |
28 |
8 |
5 |
9 |
|
LYF10M6 |
LYF10-6 |
6.5 |
11.5 |
28 |
|||
|
LYF10M8 |
LYF10-8 |
8.4 |
13.5 |
32 |
|||
|
LYF10M10 |
LYF10-10 |
10.5 |
16 |
34 |
|||
|
LYF16M6 |
LYF16-6 |
6.5 |
13 |
33 |
9 |
6 |
10 |
|
LYF16M8 |
LYF16-8 |
8.4 |
13 |
33 |
|||
|
LYF16M10 |
LYF16-10 |
10.5 |
16 |
38 |
|||
|
LYF16M12 |
LYF16-12 |
13 |
22 |
47 |
14 |
||
|
LYF25M6 |
LYF25-6 |
6.5 |
16 |
37 |
11 |
8 |
11 |
|
LYF25M8 |
LYF25-8 |
8.4 |
16 |
38 |
|||
|
LYF25M10 |
LYF25-10 |
10.5 |
17 |
42 |
|||
|
LYF25M12 |
LYF25-12 |
13 |
22 |
47 |
|||
|
LYF35M6 |
LYF35-6 |
6.5 |
18 |
44 |
13 |
9 |
14 |
|
LYF35M8 |
LYF35-8 |
8.4 |
18 |
44 |
|||
|
LYF35M10 |
LYF35-10 |
10.5 |
18 |
44 |
|||
|
LYF35M12 |
LYF35-12 |
13 |
22 |
52 |
|||
|
LYF50M6 |
LYF50-6 |
6.5 |
21 |
50 |
14.5 |
11 |
17 |
|
LYF50M8 |
LYF50-8 |
8.4 |
21 |
50 |
|||
|
LYF50M10 |
LYF50-10 |
10.5 |
21 |
50 |
|||
|
LYF50M12 |
LYF50-12 |
13 |
21 |
53 |
|||
|
LYF70M6 |
LYF70-6 |
6.5 |
25 |
55 |
17 |
13 |
20 |
|
LYF70M8 |
LYF70-8 |
8.4 |
25 |
55 |
|||
|
LYF70M10 |
LYF70-10 |
10.5 |
25 |
55 |
|||
|
LYF70M12 |
LYF70-12 |
13 |
25 |
58 |
|||
|
LYF70M16 |
LYF70-16 |
17 |
28 |
64 |
|||
|
LYF95M8 |
LYF95-8 |
8.4 |
29 |
69 |
20 |
15 |
23 |
|
LYF95M10 |
LYF95-10 |
10.5 |
29 |
69 |
|||
|
LYF95M12 |
LYF95-12 |
13 |
29 |
69 |
|||
|
LYF95M16 |
LYF95-16 |
17 |
29 |
69 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
LYF120M10 |
LYF120-10 |
10.5 |
32 |
73 |
22 |
17 |
25 |
|
LYF120M12 |
LYF120-12 |
13 |
32 |
73 |
|||
|
LYF120M16 |
LYF120-16 |
17 |
32 |
73 |
|||
|
LYF150M10 |
LYF150-10 |
10.5 |
36 |
80 |
25 |
19 |
30 |
|
LYF150M12 |
LYF150-12 |
13 |
36 |
80 |
|||
|
LYF150M16 |
LYF150-16 |
17 |
36 |
80 |
|||
|
LYF150M20 |
LYF150-20 |
21 |
36 |
87 |
|||
|
LYF185M10 |
LYF185-10 |
10.5 |
39 |
86 |
27 |
21 |
35 |
|
LYF185M12 |
LYF185-12 |
13 |
39 |
86 |
|||
|
LYF185M16 |
LYF185-16 |
17 |
39 |
86 |
|||
|
LYF185M20 |
LYF185-20 |
21 |
39 |
93 |
|||
|
LYF240M10 |
LYF240-10 |
10.5 |
44 |
95 |
30 |
24 |
35 |
|
LYF240M12 |
LYF240-12 |
13 |
44 |
95 |
|||
|
LYF240M16 |
LYF240-16 |
17 |
44 |
95 |
|||
|
LYF240M20 |
LYF240-20 |
21 |
44 |
95 |
|||
|
LYF300M10 |
LYF300-10 |
10.5 |
47 |
114 |
32 |
26 |
42 |
|
LYF300M12 |
LYF300-12 |
13 |
47 |
114 |
|||
|
LYF300M16 |
LYF300-16 |
17 |
47 |
114 |
|||
|
LYF300M20 |
LYF300-20 |
21 |
47 |
114 |
|||
|
LYF300M24 |
LYF300-24 |
26 |
47 |
114 |
|||
|
LYF400M12 |
LYF400-12 |
13 |
54 |
126 |
36 |
30 |
48 |
|
LYF400M16 |
LYF400-16 |
17 |
54 |
126 |
|||
|
LYF400M20 |
LYF400-20 |
21 |
54 |
126 |
|||
|
LYF400M24 |
LYF400-24 |
26 |
54 |
126 |
|||
|
LYF500M20 |
LYF500-20 |
21 |
61 |
134 |
42 |
33 |
47 |
|
LYF500M24 |
LYF500-24 |
26 |
61 |
134 |
|||
|
LYF630MBL |
LYF630-BL |
|
75 |
180 |
53 |
39 |
68 |
|
LYF630M20 |
LYF630-20 |
21 |
75 |
180 |
|||
|
LYF630M24 |
LYF630-24 |
26 |
75 |
180 |
|||
