PART NO. 规格/编码 |
ITEM NO. 品名型号 |

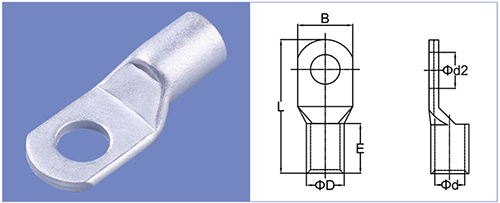

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
NSC1.5M4 |
NSC1.5-4 |
4.3 |
7.5 |
18 |
3.1 |
1.9 |
6.5 |
|
NSC1.5M5 |
NSC1.5-5 |
5.2 |
8 |
18 |
|||
|
NSC1.5M6 |
NSC1.5-6 |
6.5 |
9.2 |
18 |
3.4 |
||
|
NSC2.5M4 |
NSC2.5-4 |
4.3 |
8 |
19 |
4 |
2.8 |
7 |
|
NSC2.5M5 |
NSC2.5-5 |
5.2 |
8 |
20 |
|||
|
NSC2.5M6 |
NSC2.5-6 |
6.5 |
9.2 |
20 |
4 |
2.6 |
|
|
NSC4M4 |
NSC4-4 |
4.3 |
8 |
19.5 |
4.5 |
3.2 |
7.5 |
|
NSC4M5 |
NSC4-5 |
5.2 |
8 |
20.5 |
|||
|
NSC4M6 |
NSC4-6 |
6.5 |
9.2 |
22 |
|||
|
NSC4M8 |
NSC4-8 |
8.5 |
12 |
23.5 |
4.8 |
||
|
NSC6M5 |
NSC6-5 |
5.2 |
10.3 |
26 |
5.5 |
3.8 |
10 |
|
NSC6M6 |
NSC6-6 |
6.5 |
10.3 |
26 |
|||
|
NSC6M8 |
NSC6-8 |
8.5 |
13.9 |
29 |
|||
|
NSC6M10 |
NSC6-10 |
10.3 |
13.9 |
29 |
|||
|
NSC10M5 |
NSC10-5 |
5.2 |
11.9 |
27.5 |
6.9 |
4.7 |
11.5 |
|
NSC10M6 |
NSC10-6 |
6.5 |
11.9 |
27.5 |
|||
|
NSC10M8 |
NSC10-8 |
8.5 |
13.5 |
30.5 |
|||
|
NSC10M10 |
NSC10-10 |
10.3 |
15 |
30.5 |
|||
|
NSC16M6 |
NSC16-6 |
6.5 |
12.2 |
31.5 |
8 |
6 |
11 |
|
NSC16M8 |
NSC16-8 |
8.5 |
12.2 |
31.5 |
|||
|
NSC16M10 |
NSC16-10 |
10.5 |
15 |
32.5 |
|||
|
NSC25M6 |
NSC25-6 |
6.5 |
13.5 |
35.8 |
9.4 |
7 |
16.6 |
|
NSC25M8 |
NSC25-8 |
8.5 |
13.5 |
35.8 |
|||
|
NSC25M10 |
NSC25-10 |
10.5 |
14.5 |
36.8 |
|||
|
NSC25M12 |
NSC25-12 |
13 |
17 |
37.8 |
|||
|
NSC35M6 |
NSC35-6 |
6.5 |
16.4 |
40.3 |
11.5 |
8.6 |
16.5 |
|
NSC35M8 |
NSC35-8 |
8.5 |
16.4 |
40.3 |
|||
|
NSC35M10 |
NSC35-10 |
10.5 |
16.4 |
40.3 |
|||
|
NSC35M12 |
NSC35-12 |
13 |
19 |
43.3 |
|||
|
NSC50M6 |
NSC50-6 |
6.5 |
19.5 |
46.5 |
13.5 |
10.5 |
18.5 |
|
NSC50M8 |
NSC50-8 |
8.5 |
19.5 |
46.5 |
|||
|
NSC50M10 |
NSC50-10 |
10.5 |
19.5 |
46.5 |
|||
|
NSC50M12 |
NSC50-12 |
13 |
19.5 |
46.5 |
|||
|
NSC70M6 |
NSC70-6 |
6.5 |
21.8 |
52.3 |
15 |
12 |
20.5 |
|
NSC70M8 |
NSC70-8 |
8.5 |
21.8 |
52.3 |
|||
|
NSC70M10 |
NSC70-10 |
10.5 |
21.8 |
52.3 |
|||
|
NSC70M12 |
NSC70-12 |
13 |
21.8 |
52.3 |
|||
|
NSC70M14 |
NSC70-14 |
15 |
21.8 |
52.3 |
|||
|
NSC70M16 |
NSC70-16 |
17 |
26 |
56 |
|||
|
NSC95M8 |
NSC95-8 |
8.5 |
25.3 |
57 |
17.5 |
13.9 |
22 |
|
NSC95M10 |
NSC95-10 |
10.5 |
25.3 |
57 |
|||
|
NSC95M12 |
NSC95-12 |
13 |
25.3 |
57 |
|||
|
NSC95M14 |
NSC95-14 |
15 |
25.3 |
57 |
|||
