PART NO. 规格/编码 |
ITEM NO. 品名型号 |

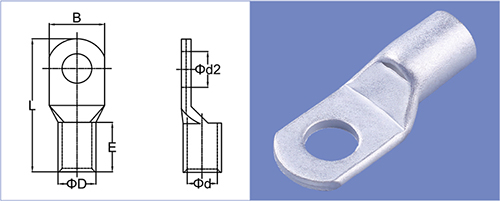

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
SCXB1.5M4 |
SCXB1.5-4 |
4.3 |
8 |
16.5 |
4 |
2.2 |
5 |
|
SCXB1.5M5 |
SCXB1.5-5 |
5.3 |
8 |
16.5 |
|||
|
SCXB2.5M4 |
SCXB2.5-4 |
4.3 |
8 |
19 |
4.5 |
2.9 |
7 |
|
SCXB2.5M5 |
SCXB2.5-5 |
5.3 |
8 |
21 |
|||
|
SCXB2.5M6 |
SCXB2.5-6 |
6.4 |
10 |
21 |
|||
|
SCXB2.5M8 |
SCXB2.5-8 |
8.4 |
13 |
23 |
|||
|
SCXB4M4 |
SCXB4-4 |
4.3 |
10 |
21 |
5.2 |
3.6 |
7 |
|
SCXB4M5 |
SCXB4-5 |
5.3 |
10 |
21 |
|||
|
SCXB4M6 |
SCXB4-6 |
6.4 |
10 |
21 |
|||
|
SCXB4M8 |
SCXB4-8 |
8.4 |
13 |
24 |
|||
|
SCXB6M4 |
SCXB6-4 |
4.3 |
10 |
23 |
6 |
4.2 |
9 |
|
SCXB6M5 |
SCXB6-5 |
5.3 |
10 |
23 |
|||
|
SCXB6M6 |
SCXB6-6 |
6.4 |
10 |
26 |
|||
|
SCXB6M8 |
SCXB6-8 |
8.4 |
12 |
26 |
|||
|
SCXB6M10 |
SCXB6-10 |
10.5 |
16 |
34 |
|||
|
SCXB10M5 |
SCXB10-5 |
5.3 |
12.4 |
27 |
7 |
5 |
9 |
|
SCXB10M6 |
SCXB10-6 |
6.4 |
12.4 |
27 |
|||
|
SCXB10M8 |
SCXB10-8 |
8.4 |
12.4 |
28 |
|||
|
SCXB10M10 |
SCXB10-10 |
10.5 |
18 |
34.5 |
|||
|
SCXB10M12 |
SCXB10-12 |
13 |
18.5 |
39.5 |
|||
|
SCXB16M4 |
SCXB16-4 |
4.3 |
12.4 |
31 |
7.8 |
5.8 |
12 |
|
SCXB16M5 |
SCXB16-5 |
5.3 |
12.4 |
31 |
|||
|
SCXB16M6 |
SCXB16-6 |
6.4 |
12.4 |
31 |
|||
|
SCXB16M8 |
SCXB16-8 |
8.4 |
12.4 |
31 |
|||
|
SCXB16M10 |
SCXB16-10 |
10.5 |
16 |
34 |
|||
|
SCXB16M12 |
SCXB16-12 |
13 |
19.5 |
42 |
|||
|
SCXB25M5 |
SCXB25-5 |
5.3 |
14 |
32 |
9.5 |
7.5 |
12 |
|
SCXB25M6 |
SCXB25-6 |
6.4 |
14 |
32 |
|||
|
SCXB25M8 |
SCXB25-8 |
8.4 |
18 |
34 |
|||
|
SCXB25M10 |
SCXB25-10 |
10.5 |
17.5 |
37 |
|||
|
SCXB25M12 |
SCXB25-12 |
13 |
20.5 |
45 |
|||
|
SCXB35M6 |
SCXB35-6 |
6.4 |
16.5 |
38 |
11.4 |
8.6 |
15 |
|
SCXB35M8 |
SCXB35-8 |
8.4 |
16.5 |
38 |
|||
|
SCXB35M10 |
SCXB35-10 |
10.5 |
17.5 |
41 |
|||
|
SCXB35M12 |
SCXB35-12 |
13 |
18 |
47.5 |
|||
|
SCXB50M6 |
SCXB50-6 |
6.4 |
18 |
43.5 |
12.6 |
9.6 |
16 |
|
SCXB50M8 |
SCXB50-8 |
8.4 |
18 |
44 |
|||
|
SCXB50M10 |
SCXB50-10 |
10.5 |
18 |
44 |
|||
|
SCXB50M12 |
SCXB50-12 |
13 |
18 |
44 |
|||
|
SCXB50M14 |
SCXB50-14 |
15 |
25 |
55.5 |
|||
|
SCXB50M16 |
SCXB50-16 |
17 |
26 |
60 |
|||
|
SCXB70M6 |
SCXB70-6 |
6.4 |
21.8 |
50 |
15 |
12 |
18 |
|
SCXB70M8 |
SCXB70-8 |
8.4 |
21.8 |
50 |
|||
|
SCXB70M10 |
SCXB70-10 |
10.5 |
21.8 |
50 |
|||
|
SCXB70M12 |
SCXB70-12 |
13 |
21.8 |
50 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
||
|
SCXB70M14 |
SCXB70-14 |
15 |
21.8 |
59 |
15 |
12 |
18 |
|
SCXB70M16 |
SCXB70-16 |
17 |
26 |
63 |
|||
|
SCXB95M5 |
SCXB95-5 |
5.3 |
25 |
55.5 |
17.4 |
13.5 |
20 |
|
SCXB95M6 |
SCXB95-6 |
6.4 |
25 |
55.5 |
|||
|
SCXB95M8 |
SCXB95-8 |
8.4 |
25 |
55.5 |
|||
|
SCXB95M10 |
SCXB95-10 |
10.5 |
25 |
55.5 |
|||
|
SCXB95M12 |
SCXB95-12 |
13 |
25 |
55.5 |
|||
|
SCXB95M14 |
SCXB95-14 |
15 |
25 |
65 |
|||
|
SCXB95M16 |
SCXB95-16 |
17 |
27 |
69.5 |
|||
|
SCXB95M20 |
SCXB95-20 |
21 |
29 |
77.5 |
|||
|
SCXB120M8 |
SCXB120-8 |
8.4 |
28.4 |
60 |
19.8 |
15 |
22 |
|
SCXB120M10 |
SCXB120-10 |
10.5 |
28.4 |
60 |
|||
|
SCXB120M12 |
SCXB120-12 |
13 |
28.4 |
60 |
|||
|
SCXB120M14 |
SCXB120-14 |
15 |
28.4 |
64 |
|||
|
SCXB120M16 |
SCXB120-16 |
17 |
28.4 |
64 |
|||
|
SCXB150M6 |
SCXB150-6 |
6.4 |
30.5 |
69 |
21.2 |
16.5 |
26 |
|
SCXB150M8 |
SCXB150-8 |
8.4 |
30.5 |
69 |
|||
|
SCXB150M10 |
SCXB150-10 |
10.5 |
30.5 |
69 |
|||
|
SCXB150M12 |
SCXB150-12 |
13 |
30.5 |
69 |
|||
|
SCXB150M14 |
SCXB150-14 |
15 |
30.5 |
69 |
|||
|
SCXB150M16 |
SCXB150-16 |
17 |
30.5 |
69 |
|||
|
SCXB150M20 |
SCXB150-20 |
21 |
30.5 |
69 |
|||
|
SCXB185M10 |
SCXB185-10 |
10.5 |
34 |
78 |
23.5 |
18.5 |
32 |
|
SCXB185M12 |
SCXB185-12 |
13 |
34 |
78 |
|||
|
SCXB185M14 |
SCXB185-14 |
15 |
34 |
78 |
|||
|
SCXB185M16 |
SCXB185-16 |
17 |
34 |
78 |
|||
|
SCXB185M20 |
SCXB185-20 |
21 |
34 |
78 |
|||
|
SCXB240M10 |
SCXB240-10 |
10.5 |
38.5 |
92 |
26.5 |
21.5 |
38 |
|
SCXB240M12 |
SCXB240-12 |
13 |
38.5 |
92 |
|||
|
SCXB240M14 |
SCXB240-14 |
15 |
38.5 |
92 |
|||
|
SCXB240M16 |
SCXB240-16 |
17 |
38.5 |
92 |
|||
|
SCXB240M20 |
SCXB240-20 |
21 |
38.5 |
92 |
|||
|
SCXB300M12 |
SCXB300-12 |
13 |
43 |
101 |
30 |
23.5 |
42 |
|
SCXB300M14 |
SCXB300-14 |
15 |
43 |
101 |
|||
|
SCXB300M16 |
SCXB300-16 |
17 |
43 |
101 |
|||
|
SCXB300M18 |
SCXB300-18 |
19 |
43 |
101 |
|||
|
SCXB300M20 |
SCXB300-20 |
21 |
43 |
101 |
|||
|
SCXB400M12 |
SCXB400-12 |
13 |
52 |
114 |
36.5 |
28.5 |
44 |
|
SCXB400M16 |
SCXB400-16 |
17 |
52 |
114 |
|||
|
SCXB400M18 |
SCXB400-18 |
19 |
52 |
114 |
|||
|
SCXB400M20 |
SCXB400-20 |
21 |
52 |
114 |
|||
|
SCXB500M16 |
SCXB500-16 |
17 |
56 |
124 |
39 |
30.5 |
48 |
|
SCXB500M18 |
SCXB500-18 |
19 |
56 |
124 |
|||
|
SCXB500M20 |
SCXB500-20 |
21 |
56 |
124 |
|||
|
SCXB600M20 |
SCXB600-20 |
21 |
65 |
144 |
55 |
45 |
56 |
