PART NO. 规格/编码 |
ITEM NO. 品名型号 |

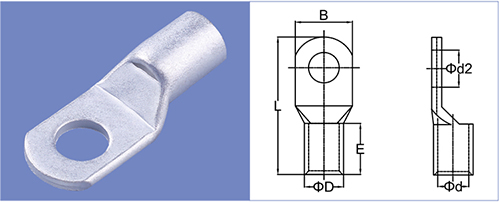

尺寸DIMENSIONS(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
||
|
SC1.5M4 |
SC1.5-4 |
4.2 |
8 |
16 |
3.7 |
1.8 |
5 |
|
SC1.5M5 |
SC1.5-5 |
5.2 |
10 |
17 |
|||
|
SC1.5M6 |
SC1.5-6 |
6.5 |
10 |
18 |
|||
|
SC2.5M4 |
SC2.5-4 |
4.2 |
8 |
18 |
4 |
2.4 |
7 |
|
SC2.5M5 |
SC2.5-5 |
5.2 |
10 |
20 |
|||
|
SC2.5M6 |
SC2.5-6 |
6.5 |
10 |
20 |
|||
|
SC2.5M8 |
SC2.5-8 |
8.4 |
12.5 |
23 |
|||
|
SC4M4 |
SC4-4 |
4.2 |
10 |
20 |
4.8 |
3.1 |
7 |
|
SC4M5 |
SC4-5 |
5.2 |
10 |
20 |
|||
|
SC4M6 |
SC4-6 |
6.5 |
10 |
20 |
|||
|
SC4M8 |
SC4-8 |
8.4 |
12.5 |
23 |
|||
|
SC6M4 |
SC6-4 |
4.2 |
10 |
24 |
5.5 |
3.8 |
9 |
|
SC6M5 |
SC6-5 |
5.2 |
10 |
24 |
|||
|
SC6M6 |
SC6-6 |
6.5 |
12 |
24 |
|||
|
SC6M8 |
SC6-8 |
8.4 |
12.5 |
26 |
|||
|
SC6M10 |
SC6-10 |
10.5 |
15 |
28 |
6.2 |
4 |
|
|
SC10M5 |
SC10-5 |
5.2 |
12 |
25 |
6.2 |
4.5 |
9 |
|
SC10M6 |
SC10-6 |
6.5 |
12 |
25 |
|||
|
SC10M8 |
SC10-8 |
8.4 |
12.5 |
27 |
|||
|
SC10M10 |
SC10-10 |
10.5 |
15 |
29 |
|||
|
SC10M12 |
SC10-12 |
13 |
17 |
31 |
|||
|
SC16M5 |
SC16-5 |
5.2 |
12 |
30 |
7.1 |
5.4 |
12 |
|
SC16M6 |
SC16-6 |
6.5 |
12 |
30 |
|||
|
SC16M8 |
SC16-8 |
8.4 |
12.5 |
30 |
|||
|
SC16M10 |
SC16-10 |
10.5 |
16 |
33 |
|||
|
SC16M12 |
SC16-12 |
13 |
17 |
35 |
|||
|
SC25M5 |
SC25-5 |
5.2 |
13 |
33 |
8.8 |
6.8 |
12 |
|
SC25M6 |
SC25-6 |
6.5 |
13 |
33 |
|||
|
SC25M8 |
SC25-8 |
8.4 |
15 |
33 |
|||
|
SC25M10 |
SC25-10 |
10.5 |
18 |
34 |
|||
|
SC25M12 |
SC25-12 |
13 |
18 |
35 |
|||
|
SC25M14 |
SC25-14 |
15 |
20 |
38 |
|||
|
SC35M5 |
SC35-5 |
5.2 |
16 |
38 |
10.6 |
8.2 |
14 |
|
SC35M6 |
SC35-6 |
6.5 |
16 |
38 |
|||
|
SC35M8 |
SC35-8 |
8.4 |
16 |
38 |
|||
|
SC35M10 |
SC35-10 |
10.5 |
18 |
39 |
|||
|
SC35M12 |
SC35-12 |
13 |
19 |
40.5 |
|||
|
SC35M14 |
SC35-14 |
15 |
20 |
42 |
|||
|
SC50M6 |
SC50-6 |
6.5 |
17.8 |
45 |
12.4 |
9.5 |
16 |
|
SC50M8 |
SC50-8 |
8.4 |
17.8 |
45 |
|||
|
SC50M10 |
SC50-10 |
10.5 |
17.8 |
45 |
|||
|
SC50M12 |
SC50-12 |
13 |
20 |
45 |
|||
|
SC50M14 |
SC50-14 |
15 |
22 |
46 |
|||
|
SC50M16 |
SC50-16 |
17 |
24 |
47 |
|||
|
SC70M8 |
SC70-8 |
8.4 |
21 |
52 |
14.7 |
11.2 |
20 |
|
SC70M10 |
SC70-10 |
10.5 |
21 |
52 |
|||
|
SC70M12 |
SC70-12 |
13 |
21 |
52 |
|||
|
SC70M14 |
SC70-14 |
15 |
21 |
52 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
||
|
SC70M16 |
SC70-16 |
17 |
25 |
53 |
14.7 |
11.2 |
20 |
|
SC95M8 |
SC95-8 |
8.4 |
25 |
58 |
17.4 |
13.5 |
23 |
|
SC95M10 |
SC95-10 |
10.5 |
25 |
58 |
|||
|
SC95M12 |
SC95-12 |
13 |
25 |
58 |
|||
|
SC95M14 |
SC95-14 |
15 |
25 |
58 |
|||
|
SC95M16 |
SC95-16 |
17 |
25 |
58 |
|||
|
SC120M8 |
SC120-8 |
8.4 |
28 |
63 |
19.4 |
15 |
22 |
|
SC120M10 |
SC120-10 |
10.5 |
28 |
63 |
|||
|
SC120M12 |
SC120-12 |
13 |
28 |
63 |
|||
|
SC120M14 |
SC120-14 |
15 |
28 |
63 |
|||
|
SC120M16 |
SC120-16 |
17 |
28 |
63 |
|||
|
SC120M20 |
SC120-20 |
21 |
28 |
63 |
|||
|
SC150M8 |
SC150-8 |
8.4 |
30.5 |
70 |
21.2 |
16.5 |
26 |
|
SC150M10 |
SC150-10 |
10.5 |
30.5 |
70 |
|||
|
SC150M12 |
SC150-12 |
13 |
30.5 |
70 |
|||
|
SC150M14 |
SC150-14 |
15 |
30.5 |
70 |
|||
|
SC150M16 |
SC150-16 |
17 |
30.5 |
70 |
|||
|
SC150M20 |
SC150-20 |
21 |
30.5 |
70 |
|||
|
SC185M10 |
SC185-10 |
10.5 |
34 |
75 |
23.5 |
18.5 |
32 |
|
SC185M12 |
SC185-12 |
13 |
34 |
75 |
|||
|
SC185M14 |
SC185-14 |
15 |
34 |
75 |
|||
|
SC185M16 |
SC185-16 |
17 |
34 |
75 |
|||
|
SC185M20 |
SC185-20 |
21 |
34 |
75 |
|||
|
SC240M10 |
SC240-10 |
10.5 |
38.5 |
90 |
26.5 |
21 |
38 |
|
SC240M12 |
SC240-12 |
13 |
38.5 |
90 |
|||
|
SC240M14 |
SC240-14 |
15 |
38.5 |
90 |
|||
|
SC240M16 |
SC240-16 |
17 |
38.5 |
90 |
|||
|
SC240M18 |
SC240-18 |
19 |
38.5 |
90 |
|||
|
SC240M20 |
SC240-20 |
21 |
38.5 |
90 |
|||
|
SC300M10 |
SC300-10 |
10.5 |
43 |
98 |
30 |
23.5 |
42 |
|
SC300M12 |
SC300-12 |
13 |
43 |
98 |
|||
|
SC300M14 |
SC300-14 |
15 |
43 |
98 |
|||
|
SC300M16 |
SC300-16 |
17 |
43 |
98 |
|||
|
SC300M20 |
SC300-20 |
21 |
43 |
98 |
|||
|
SC400M10 |
SC400-10 |
10.5 |
52.5 |
110 |
36.5 |
28.5 |
44 |
|
SC400M12 |
SC400-12 |
13 |
52.5 |
110 |
|||
|
SC400M14 |
SC400-14 |
15 |
52.5 |
110 |
|||
|
SC400M16 |
SC400-16 |
17 |
52.5 |
110 |
|||
|
SC400M20 |
SC400-20 |
21 |
52.5 |
110 |
|||
|
SC500M10 |
SC500-10 |
10.5 |
56 |
120 |
39 |
30 |
48 |
|
SC500M12 |
SC500-12 |
13 |
56 |
120 |
|||
|
SC500M14 |
SC500-14 |
15 |
56 |
120 |
|||
|
SC500M16 |
SC500-16 |
17 |
56 |
120 |
|||
|
SC500M20 |
SC500-20 |
21 |
56 |
120 |
|||
|
SC630M10 |
SC630-10 |
10.5 |
65 |
140 |
45 |
35 |
56 |
|
SC630M12 |
SC630-12 |
13 |
65 |
140 |
|||
|
SC630M14 |
SC630-14 |
15 |
65 |
140 |
|||
|
SC630M16 |
SC630-16 |
17 |
65 |
140 |
|||
|
SC630M20 |
SC630-20 |
21 |
65 |
140 |
|||
