PART NO 规格/编码 |
ITEM NO 品名型号 |

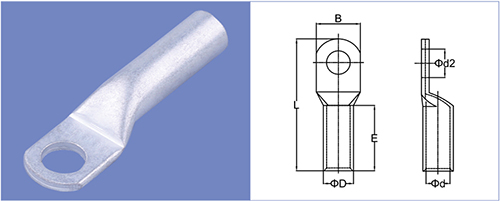

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
T1.5M4 |
T1.5-4 |
4.3 |
8.7 |
19 |
4 |
2.4 |
7 |
|
T1.5M5 |
T1.5-5 |
5.3 |
8.7 |
19 |
|||
|
T1.5M6 |
T1.5-6 |
6.4 |
10 |
20 |
|||
|
T2.5M4 |
T2.5-4 |
4.3 |
8.7 |
19 |
4.3 |
2.7 |
7 |
|
T2.5M5 |
T2.5-5 |
5.3 |
8.7 |
19 |
|||
|
T2.5M6 |
T2.5-6 |
6.4 |
10.3 |
21 |
|||
|
T2.5M8 |
T2.5-8 |
8.3 |
12 |
23 |
|||
|
T4M4 |
T4-4 |
4.3 |
8.7 |
21.5 |
4.8 |
3.1 |
9.5 |
|
T4M5 |
T4-5 |
5.3 |
8.7 |
21.5 |
|||
|
T4M6 |
T4-6 |
6.4 |
10.3 |
23.5 |
|||
|
T4M8 |
T4-8 |
8.3 |
12.5 |
28.5 |
|||
|
T6M4 |
T6-4 |
4.3 |
10.3 |
26 |
5.5 |
3.8 |
10 |
|
T6M5 |
T6-5 |
5.3 |
10.3 |
26 |
|||
|
T6M6 |
T6-6 |
6.4 |
10.3 |
26 |
|||
|
T6M8 |
T6-8 |
8.3 |
13.9 |
29 |
|||
|
T6M10 |
T6-10 |
10.5 |
13.9 |
29 |
|||
|
T10M4 |
T10-4 |
4.3 |
11.9 |
27.5 |
6.9 |
4.7 |
11.5 |
|
T10M5 |
T10-5 |
5.3 |
11.9 |
27.5 |
|||
|
T10M6 |
T10-6 |
6.4 |
11.9 |
27.5 |
|||
|
T10M8 |
T10-8 |
8.3 |
13.5 |
30.5 |
|||
|
T10M10 |
T10-10 |
10.5 |
15 |
30.5 |
|||
|
T10M12 |
T10-12 |
13.2 |
17 |
34 |
|||
|
T16M5 |
T16-5 |
5.3 |
12 |
27.5 |
7.8 |
5.6 |
12 |
|
T16M6 |
T16-6 |
6.4 |
12 |
27.5 |
|||
|
T16M8 |
T16-8 |
8.3 |
13.5 |
31 |
|||
|
T16M10 |
T16-10 |
10.5 |
16 |
32 |
|||
|
T16M12 |
T16-12 |
13.2 |
17 |
37.5 |
|||
|
T25M6 |
T25-6 |
6.4 |
14 |
34 |
9.5 |
7.1 |
13.5 |
|
T25M8 |
T25-8 |
8.3 |
14 |
34 |
|||
|
T25M10 |
T25-10 |
10.5 |
16 |
37 |
|||
|
T25M12 |
T25-12 |
13.2 |
18 |
40 |
|||
|
T35M6 |
T35-6 |
6.4 |
16.5 |
39 |
11 |
8.2 |
16 |
|
T35M8 |
T35-8 |
8.3 |
16.5 |
39 |
|||
|
T35M10 |
T35-10 |
10.5 |
16.5 |
43 |
|||
|
T35M12 |
T35-12 |
13.2 |
18 |
43 |
|||
|
T35M14 |
T35-14 |
14.5 |
20 |
48 |
|||
|
T35M16 |
T35-16 |
16.5 |
23 |
48 |
|||
|
T40M6 |
T40-6 |
6.4 |
17 |
44 |
11.2 |
9 |
17 |
|
T40M8 |
T40-8 |
8.3 |
17 |
44 |
|||
|
T40M10 |
T40-10 |
10.5 |
17 |
44 |
|||
|
T40M12 |
T40-12 |
13.2 |
18 |
44 |
|||
|
T50M6 |
T50-6 |
6.4 |
18 |
45 |
12.5 |
9.5 |
20 |
|
T50M8 |
T50-8 |
8.3 |
18 |
45 |
|||
|
T50M10 |
T50-10 |
10.5 |
18 |
49 |
|||
|
T50M12 |
T50-12 |
13.2 |
18 |
49 |
|||
|
T50M14 |
T50-14 |
14.5 |
22 |
54 |
|||
|
T50M16 |
T50-16 |
16.5 |
25 |
62 |
14 |
9.5 |
23 |
|
T50M20 |
T50-20 |
21 |
28 |
68 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
T70M8 |
T70-8 |
8.3 |
21.5 |
47.6 |
15 |
11.5 |
20 |
|
T70M10 |
T70-10 |
10.5 |
21.5 |
51.6 |
|||
|
T70M12 |
T70-12 |
13.2 |
21.5 |
51.6 |
|||
|
T70M14 |
T70-14 |
14.5 |
21.5 |
62.6 |
|||
|
T70M16 |
T70-16 |
16.5 |
21.5 |
62.6 |
|||
|
T70M20 |
T70-20 |
21 |
30 |
62.6 |
|||
|
T95M8 |
T95-8 |
8.3 |
25 |
55.8 |
17 |
13.5 |
22 |
|
T95M10 |
T95-10 |
10.5 |
25 |
55.8 |
|||
|
T95M12 |
T95-12 |
13.2 |
25 |
55.8 |
|||
|
T95M14 |
T95-14 |
14.5 |
25 |
66.8 |
17 |
13.5 |
22 |
|
T95M16 |
T95-16 |
16.5 |
25 |
66.8 |
|||
|
T95M20 |
T95-20 |
21 |
30 |
66.8 |
|||
|
T120M10 |
T120-10 |
10.5 |
29 |
71.5 |
20 |
15.6 |
27 |
|
T120M12 |
T120-12 |
13.2 |
29 |
71.5 |
|||
|
T120M14 |
T120-14 |
14.5 |
29 |
71.5 |
|||
|
T120M16 |
T120-16 |
16.5 |
29 |
71.5 |
|||
|
T120M20 |
T120-20 |
21 |
29 |
71.5 |
|||
|
T150M10 |
T150-10 |
10.5 |
30.6 |
78 |
21 |
16.5 |
32 |
|
T150M12 |
T150-12 |
13.2 |
30.6 |
78 |
|||
|
T150M14 |
T150-14 |
14.5 |
30.6 |
78 |
|||
|
T150M16 |
T150-16 |
16.5 |
30.6 |
78 |
|||
|
T150M20 |
T150-20 |
21 |
30.6 |
78 |
|||
|
T185M10 |
T185-10 |
10.5 |
34 |
84 |
23.6 |
18.4 |
34 |
|
T185M12 |
T185-12 |
13.2 |
34 |
84 |
|||
|
T185M14 |
T185-14 |
14.5 |
34 |
84 |
|||
|
T185M16 |
T185-16 |
16.5 |
34 |
84 |
|||
|
T185M20 |
T185-20 |
21 |
34 |
84 |
|||
|
T240M10 |
T240-10 |
10.5 |
38.5 |
90 |
26.4 |
21.2 |
37 |
|
T240M12 |
T240-12 |
13.2 |
38.5 |
90 |
|||
|
T240M14 |
T240-14 |
14.5 |
38.5 |
90 |
|||
|
T240M16 |
T240-16 |
16.5 |
38.5 |
90 |
|||
|
T240M20 |
T240-20 |
21 |
38.5 |
90 |
|||
|
T300M10 |
T300-10 |
10.5 |
42 |
96 |
28.6 |
23.4 |
40 |
|
T300M12 |
T300-12 |
13.2 |
42 |
96 |
|||
|
T300M14 |
T300-14 |
14.5 |
42 |
96 |
|||
|
T300M16 |
T300-16 |
16.5 |
42 |
96 |
|||
|
T300M20 |
T300-20 |
21 |
42 |
96 |
|||
|
T400M10 |
T400-10 |
10.5 |
48 |
104.7 |
32.8 |
26.8 |
37 |
|
T400M12 |
T400-12 |
13.2 |
48 |
104.7 |
|||
|
T400M14 |
T400-14 |
14.5 |
48 |
104.7 |
|||
|
T400M16 |
T400-16 |
16.5 |
48 |
104.7 |
|||
|
T400M20 |
T400-20 |
21 |
48 |
104.7 |
|||
|
T500M10 |
T500-10 |
10.5 |
55 |
115.5 |
38.4 |
29.8 |
46.5 |
|
T500M12 |
T500-12 |
13.2 |
55 |
115.5 |
|||
|
T500M14 |
T500-14 |
14.5 |
55 |
115.5 |
|||
|
T500M16 |
T500-16 |
16.5 |
55 |
115.5 |
|||
|
T500M20 |
T500-20 |
21 |
55 |
115.5 |
|||
|
T630M10 |
T630-10 |
10.5 |
64 |
133.1 |
44.7 |
34.5 |
50 |
|
T630M12 |
T630-12 |
13.2 |
64 |
133.1 |
|||
|
T630M14 |
T630-14 |
14.5 |
64 |
133.1 |
|||
|
T630M16 |
T630-16 |
16.5 |
64 |
133.1 |
|||
|
T630M20 |
T630-20 |
21 |
64 |
133.1 |
|||
