PART NO. 规格/编码 |
ITEM NO. 品名型号 |

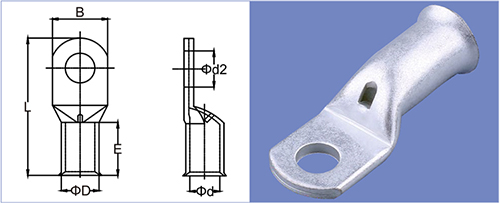

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
TT10M6 |
TT10-6 |
6.4 |
11.9 |
28 |
6.9 |
4.7 |
12 |
|
TT10M8 |
TT10-8 |
8.3 |
13.5 |
31 |
|||
|
TT16M6 |
TT16-6 |
6.4 |
11.9 |
33 |
7.8 |
5.6 |
17 |
|
TT16M8 |
TT16-8 |
8.3 |
13.5 |
37 |
|||
|
TT16M10 |
TT16-10 |
10.5 |
16 |
38 |
|||
|
TT25M8 |
TT25-8 |
8.3 |
14 |
39 |
9.5 |
7.1 |
18 |
|
TT25M10 |
TT25-10 |
10.5 |
16 |
42 |
|||
|
TT35M8 |
TT35-8 |
8.3 |
16.5 |
42 |
11 |
8.2 |
19 |
|
TT35M10 |
TT35-10 |
10.5 |
16.5 |
46 |
|||
|
TT50M10 |
TT50-10 |
10.5 |
18 |
51 |
12.5 |
9.5 |
22 |
|
TT50M12 |
TT50-12 |
13 |
18 |
51 |
|||
|
TT70M10 |
TT70-10 |
10.5 |
21.5 |
54 |
15 |
11.5 |
22 |
|
TT70M12 |
TT70-12 |
13 |
21.5 |
54 |
|||
|
TT95M14 |
TT95-14 |
14.5 |
24.7 |
72 |
17 |
13.5 |
27 |
|
TT95M16 |
TT95-16 |
16.5 |
24.7 |
72 |
|||
|
TT120M14 |
TT120-14 |
14.5 |
28.9 |
74 |
20 |
15.6 |
29 |
|
TT120M16 |
TT120-16 |
16.5 |
28.9 |
74 |
|||
|
TT150M14 |
TT150-14 |
14.5 |
30.4 |
84 |
21 |
16.5 |
38 |
|
TT150M16 |
TT150-16 |
16.5 |
30.4 |
84 |
|||
|
TT185M16 |
TT185-16 |
16.5 |
34 |
92 |
23.6 |
18.4 |
42 |
|
TT240M16 |
TT240-16 |
16.5 |
38.5 |
98 |
26.4 |
21.2 |
45 |
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
S-TT6M4 |
S-TT6-4 |
4.3 |
10.3 |
25 |
5.5 |
3.8 |
11 |
|
S-TT6M5 |
S-TT6-5 |
5.3 |
10.3 |
25 |
|||
|
S-TT6M6 |
S-TT6-6 |
6.4 |
10.3 |
26 |
|||
|
S-TT6M8 |
S-TT6-8 |
8.3 |
14 |
29 |
|||
|
S-TT10M4 |
S-TT10-4 |
4.3 |
11.9 |
26.5 |
6.8 |
4.7 |
11.5 |
|
S-TT10M5 |
S-TT10-5 |
5.3 |
11.9 |
27 |
|||
|
S-TT10M6 |
S-TT10-6 |
6.4 |
11.9 |
28.5 |
|||
|
S-TT10M8 |
S-TT10-8 |
8.3 |
15 |
31.5 |
|||
|
S-TT10M10 |
S-TT10-10 |
10.5 |
18 |
35.5 |
|||
|
S-TT16M5 |
S-TT16-5 |
5.3 |
11.9 |
32 |
7.8 |
5.6 |
16.5 |
|
S-TT16M6 |
S-TT16-6 |
6.4 |
11.9 |
34 |
|||
|
S-TT16M8 |
S-TT16-8 |
8.3 |
15 |
36.5 |
|||
|
S-TT16M10 |
S-TT16-10 |
10.5 |
18 |
40 |
|||
|
S-TT25M6 |
S-TT25-6 |
6.4 |
13.5 |
36 |
9.4 |
7.1 |
18 |
|
S-TT25M8 |
S-TT25-8 |
8.3 |
15 |
39 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
S-TT25M10 |
S-TT25-10 |
10.5 |
18 |
44 |
9.4 |
7.1 |
18 |
|
S-TT25M12 |
S-TT25-12 |
13 |
21 |
46 |
|||
|
S-TT35M6 |
S-TT35-6 |
6.4 |
16.5 |
37 |
11.3 |
8.7 |
19 |
|
S-TT35M8 |
S-TT35-8 |
8.3 |
16.5 |
38 |
16 |
||
|
S-TT35M10 |
S-TT35-10 |
10.5 |
19 |
45 |
19 |
||
|
S-TT35M12 |
S-TT35-12 |
13 |
21 |
47 |
|||
|
S-TT50M6 |
S-TT50-6 |
6.4 |
17.9 |
44 |
12.6 |
9.8 |
22 |
|
S-TT50M8 |
S-TT50-8 |
8.3 |
17.9 |
46 |
|||
|
S-TT50M10 |
S-TT50-10 |
10.5 |
20 |
50 |
|||
|
S-TT50M12 |
S-TT50-12 |
13 |
21 |
54 |
|||
|
S-TT70M8 |
S-TT70-8 |
8.3 |
21.5 |
49 |
14.7 |
11.5 |
23 |
|
S-TT70M10 |
S-TT70-10 |
10.5 |
21.5 |
55 |
25 |
||
|
S-TT70M12 |
S-TT70-12 |
13 |
21.5 |
55 |
23 |
||
|
S-TT95M8 |
S-TT95-8 |
8.3 |
24.7 |
58 |
16.9 |
13.5 |
30 |
|
S-TT95M10 |
S-TT95-10 |
10.5 |
24.7 |
61 |
|||
|
S-TT95M12 |
S-TT95-12 |
13 |
24.7 |
63 |
|||
|
S-TT95M14 |
S-TT95-14 |
14.5 |
24.7 |
67 |
|||
|
S-TT95M16 |
S-TT95-16 |
16.5 |
27 |
70 |
|||
|
S-TT120M10 |
S-TT120-10 |
10.5 |
28.9 |
62 |
19.9 |
15.6 |
30.5 |
|
S-TT120M12 |
S-TT120-12 |
13 |
28.9 |
67 |
|||
|
S-TT120M14 |
S-TT120-14 |
14.5 |
28.9 |
74 |
|||
|
S-TT120M16 |
S-TT120-16 |
16.5 |
28.9 |
74 |
|||
|
S-TT150M10 |
S-TT150-10 |
10.5 |
30.4 |
75 |
20.9 |
16.5 |
38 |
|
S-TT150M12 |
S-TT150-12 |
13 |
30.4 |
81 |
|||
|
S-TT150M14 |
S-TT150-14 |
14.5 |
30.4 |
85 |
|||
|
S-TT150M16 |
S-TT150-16 |
16.5 |
30.4 |
85 |
|||
|
S-TT185M12 |
S-TT185-12 |
13 |
34 |
87 |
23.7 |
18.8 |
41 |
|
S-TT185M14 |
S-TT185-14 |
14.5 |
34 |
91 |
|||
|
S-TT185M16 |
S-TT185-16 |
16.5 |
34 |
92 |
|||
|
S-TT240M12 |
S-TT240-12 |
13 |
38.4 |
93 |
26.2 |
21.2 |
45 |
|
S-TT240M14 |
S-TT240-14 |
14.5 |
38.4 |
97 |
|||
|
S-TT240M16 |
S-TT240-16 |
16.5 |
38.4 |
98 |
|||
|
S-TT240M20 |
S-TT240-20 |
21 |
38.4 |
98 |
|||
|
S-TT300M14 |
S-TT300-14 |
14.5 |
41.7 |
100 |
28.6 |
23.4 |
49 |
|
S-TT300M16 |
S-TT300-16 |
16.5 |
41.7 |
106 |
|||
|
S-TT400M16 |
S-TT400-16 |
16.5 |
47.8 |
115 |
32.8 |
26.8 |
54 |
