PART NO. 规格/编码 |
ITEM NO. 品名型号 |

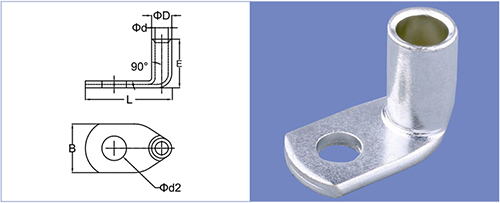

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
HUP6M5D90 |
HUP90°6-5 |
5.3 |
10 |
22.5 |
6.5 |
3.5 |
14 |
|
HUP6M6D90 |
HUP90°6-6 |
6.4 |
12 |
24.5 |
|||
|
HUP6M8D90 |
HUP90°6-8 |
8.4 |
15 |
27.5 |
|||
|
HUP6M10D90 |
HUP90°6-10 |
10.5 |
16 |
29.5 |
|||
|
HUP10M5D90 |
HUP90°10-5 |
5.3 |
12 |
23 |
7 |
4.5 |
16 |
|
HUP10M6D90 |
HUP90°10-6 |
6.4 |
12 |
24 |
|||
|
HUP10M8D90 |
HUP90°10-8 |
8.4 |
15 |
28 |
|||
|
HUP10M10D90 |
HUP90°10-10 |
10.5 |
18 |
29.5 |
|||
|
HUP16M5D90 |
HUP90°16-5 |
5.3 |
12 |
22.5 |
8.5 |
5.5 |
20 |
|
HUP16M6D90 |
HUP90°16-6 |
6.4 |
14 |
24 |
|||
|
HUP16M8D90 |
HUP90°16-8 |
8.4 |
15 |
28 |
|||
|
HUP16M10D90 |
HUP90°16-10 |
10.5 |
18 |
31 |
|||
|
HUP16M12D90 |
HUP90°16-12 |
13 |
19 |
32 |
|||
|
HUP25M6D90 |
HUP90°25-6 |
6.4 |
15 |
27.5 |
10 |
6.9 |
21 |
|
HUP25M8D90 |
HUP90°25-8 |
8.4 |
16 |
32.5 |
|||
|
HUP25M10D90 |
HUP90°25-10 |
10.5 |
18 |
32.5 |
|||
|
HUP25M12D90 |
HUP90°25-12 |
13 |
19 |
33.5 |
|||
|
HUP35M6D90 |
HUP90°35-6 |
6.4 |
17 |
28.5 |
12 |
8.5 |
24 |
|
HUP35M8D90 |
HUP90°35-8 |
8.4 |
17 |
34 |
|||
|
HUP35M10D90 |
HUP90°35-10 |
10.5 |
20 |
34 |
|||
|
HUP35M12D90 |
HUP90°35-12 |
13 |
22 |
40.5 |
|||
|
HUP50M6D90 |
HUP90°50-6 |
6.4 |
20 |
37 |
14 |
10 |
28.5 |
|
HUP50M8D90 |
HUP90°50-8 |
8.4 |
20 |
40.5 |
|||
|
HUP50M10D90 |
HUP90°50-10 |
10.5 |
20 |
40.5 |
|||
|
HUP50M12D90 |
HUP90°50-12 |
13 |
23 |
42.5 |
|||
|
HUP50M16D90 |
HUP90°50-16 |
17 |
28 |
50.5 |
|||
|
HUP70M8D90 |
HUP90°70-8 |
8.4 |
24 |
43 |
16.5 |
12 |
31 |
|
HUP70M10D90 |
HUP90°70-10 |
10.5 |
24 |
43 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
HUP70M12D90 |
HUP90°70-12 |
13 |
24 |
44.5 |
16.5 |
12 |
31 |
|
HUP70M16D90 |
HUP90°70-16 |
17 |
28 |
53 |
|||
|
HUP70M20D90 |
HUP90°70-20 |
21 |
30 |
59 |
|||
|
HUP95M8D90 |
HUP90°95-8 |
8.4 |
26 |
44.5 |
18 |
13.5 |
35 |
|
HUP95M10D90 |
HUP90°95-10 |
10.5 |
26 |
44.5 |
|||
|
HUP95M12D90 |
HUP90°95-12 |
13 |
26 |
46.5 |
|||
|
HUP95M16D90 |
HUP90°95-16 |
17 |
28 |
52 |
|||
|
HUP95M20D90 |
HUP90°95-20 |
21 |
30.5 |
59 |
|||
|
HUP120M10D90 |
HUP90°120-10 |
10.5 |
29 |
49 |
19.5 |
15 |
35.5 |
|
HUP120M12D90 |
HUP90°120-12 |
13 |
29 |
49 |
|||
|
HUP120M16D90 |
HUP90°120-16 |
17 |
29 |
55 |
|||
|
HUP120M20D90 |
HUP90°120-20 |
21 |
30.5 |
61 |
|||
|
HUP150M10D90 |
HUP90°150-10 |
10.5 |
31 |
48 |
21 |
16.5 |
40 |
|
HUP150M12D90 |
HUP90°150-12 |
13 |
31 |
51 |
|||
|
HUP150M16D90 |
HUP90°150-16 |
17 |
31 |
56 |
|||
|
HUP150M20D90 |
HUP90°150-20 |
21 |
34 |
61.5 |
|||
|
HUP185M12D90 |
HUP90°185-12 |
13 |
35 |
58.5 |
24 |
19 |
46 |
|
HUP185M16D90 |
HUP90°185-16 |
17 |
35 |
58.5 |
|||
|
HUP185M20D90 |
HUP90°185-20 |
21 |
35 |
65 |
|||
|
HUP240M12D90 |
HUP90°240-12 |
13 |
40 |
54 |
26 |
21 |
50 |
|
HUP240M16D90 |
HUP90°240-16 |
17 |
40 |
60 |
|||
|
HUP240M20D90 |
HUP90°240-20 |
21 |
40 |
67.8 |
|||
|
HUP300M12D90 |
HUP90°300-12 |
13 |
43 |
74.5 |
29.5 |
23.5 |
59 |
|
HUP300M16D90 |
HUP90°300-16 |
17 |
43 |
64 |
|||
|
HUP300M20D90 |
HUP90°300-20 |
21 |
43 |
70.5 |
|||
|
HUP400M12D90 |
HUP90°400-12 |
13 |
49 |
79 |
34 |
27 |
62 |
|
HUP400M16D90 |
HUP90°400-16 |
17 |
49 |
68.5 |
|||
|
HUP400M20D90 |
HUP90°400-20 |
21 |
49 |
75 |
|||
