PART NO. 规格/编码 |
ITEM NO. 品名型号 |

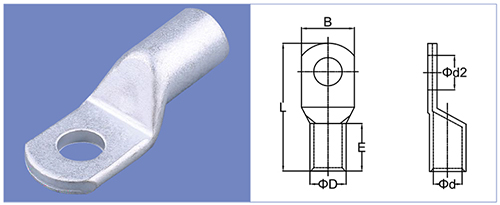

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
HUP6M5 |
HUP6-5 |
5.3 |
10 |
27.5 |
6.5 |
3.5 |
9 |
|
HUP6M6 |
HUP6-6 |
6.5 |
12 |
27.5 |
|||
|
HUP6M8 |
HUP6-8 |
8.5 |
15 |
33 |
|||
|
HUP6M10 |
HUP6-10 |
10.5 |
17 |
37 |
|||
|
HUP6M12 |
HUP6-12 |
13 |
19 |
41 |
|||
|
HUP10M5 |
HUP10-5 |
5.3 |
12 |
28.5 |
7 |
4.5 |
10 |
|
HUP10M6 |
HUP10-6 |
6.5 |
12 |
28.5 |
|||
|
HUP10M8 |
HUP10-8 |
8.5 |
15 |
35 |
|||
|
HUP10M10 |
HUP10-10 |
10.5 |
17 |
39 |
|||
|
HUP10M12 |
HUP10-12 |
13 |
19 |
42 |
|||
|
HUP16M5 |
HUP16-5 |
5.3 |
12 |
32.5 |
8.5 |
5.5 |
13 |
|
HUP16M6 |
HUP16-6 |
6.5 |
12 |
33.3 |
|||
|
HUP16M8 |
HUP16-8 |
8.5 |
15 |
37.5 |
|||
|
HUP16M10 |
HUP16-10 |
10.5 |
17 |
41.5 |
|||
|
HUP16M12 |
HUP16-12 |
13 |
19 |
45 |
|||
|
HUP16M14 |
HUP16-14 |
15 |
21 |
45 |
|||
|
HUP25M5 |
HUP25-5 |
5.3 |
14 |
37.5 |
10 |
7 |
15 |
|
HUP25M6 |
HUP25-6 |
6.5 |
14 |
37.5 |
|||
|
HUP25M8 |
HUP25-8 |
8.5 |
16 |
42 |
|||
|
HUP25M10 |
HUP25-10 |
10.5 |
18 |
46 |
|||
|
HUP25M12 |
HUP25-12 |
13 |
19 |
48 |
|||
|
HUP25M14 |
HUP25-14 |
15 |
21 |
52.5 |
|||
|
HUP35M6 |
HUP35-6 |
6.5 |
17 |
39.5 |
12 |
8.5 |
17 |
|
HUP35M8 |
HUP35-8 |
8.5 |
17 |
44 |
|||
|
HUP35M10 |
HUP35-10 |
10.5 |
19 |
49 |
|||
|
HUP35M12 |
HUP35-12 |
13 |
21 |
51 |
|||
|
HUP35M14 |
HUP35-14 |
15 |
21 |
54.5 |
|||
|
HUP35M16 |
HUP35-16 |
17 |
26 |
58 |
|||
|
HUP50M6 |
HUP50-6 |
6.5 |
20 |
47 |
14 |
10 |
19 |
|
HUP50M8 |
HUP50-8 |
8.5 |
20 |
47 |
|||
|
HUP50M10 |
HUP50-10 |
10.5 |
20 |
51 |
|||
|
HUP50M12 |
HUP50-12 |
13 |
23 |
56 |
|||
|
HUP50M14 |
HUP50-14 |
15 |
23 |
59.5 |
|||
|
HUP50M16 |
HUP50-16 |
17 |
28 |
62 |
|||
|
HUP50M20 |
HUP50-20 |
21 |
30 |
67 |
|||
|
HUP70M6 |
HUP70-6 |
6.5 |
23.5 |
53 |
16.5 |
12 |
21 |
|
HUP70M8 |
HUP70-8 |
8.5 |
23.5 |
53 |
|||
|
HUP70M10 |
HUP70-10 |
10.5 |
23.5 |
56 |
|||
|
HUP70M12 |
HUP70-12 |
13 |
23.5 |
59 |
|||
|
HUP70M14 |
HUP70-14 |
15 |
23.5 |
62.5 |
|||
|
PART NO. 规格/编码 |
ITEM NO. 品名型号 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
HUP70M16 |
HUP70-16 |
17 |
28 |
66 |
16.5 |
12 |
21 |
|
HUP70M20 |
HUP70-20 |
21 |
30 |
72 |
|||
|
HUP95M8 |
HUP95-8 |
8.5 |
26 |
60 |
18 |
13.5 |
25 |
|
HUP95M10 |
HUP95-10 |
10.5 |
26 |
60 |
|||
|
HUP95M12 |
HUP95-12 |
13 |
26 |
62 |
|||
|
HUP95M14 |
HUP95-14 |
15 |
26 |
65.5 |
|||
|
HUP95M16 |
HUP95-16 |
17 |
28 |
70 |
|||
|
HUP95M20 |
HUP95-20 |
21 |
36 |
82 |
26 |
||
|
HUP120M8 |
HUP120-8 |
8.5 |
28 |
65 |
19.5 |
15 |
26 |
|
HUP120M10 |
HUP120-10 |
10.5 |
28 |
65 |
|||
|
HUP120M12 |
HUP120-12 |
13 |
28 |
65 |
|||
|
HUP120M14 |
HUP120-14 |
15 |
28 |
67 |
|||
|
HUP120M16 |
HUP120-16 |
17 |
30 |
70 |
|||
|
HUP120M20 |
HUP120-20 |
21 |
36 |
85 |
28 |
||
|
HUP150M8 |
HUP150-8 |
8.5 |
30.5 |
70 |
21 |
16.5 |
30 |
|
HUP150M10 |
HUP150-10 |
10.5 |
30.5 |
72 |
|||
|
HUP150M12 |
HUP150-12 |
13 |
30.5 |
72 |
|||
|
HUP150M14 |
HUP150-14 |
15 |
30.5 |
72 |
|||
|
HUP150M16 |
HUP150-16 |
17 |
30.5 |
74 |
|||
|
HUP150M20 |
HUP150-20 |
21 |
36 |
88 |
|||
|
HUP185M10 |
HUP185-10 |
10.5 |
35 |
83 |
24 |
19 |
30 |
|
HUP185M12 |
HUP185-12 |
13 |
35 |
83 |
|||
|
HUP185M14 |
HUP185-14 |
15 |
35 |
83 |
|||
|
HUP185M16 |
HUP185-16 |
17 |
35 |
83 |
|||
|
HUP185M20 |
HUP185-20 |
21 |
39 |
91 |
|||
|
HUP240M10 |
HUP240-10 |
10.5 |
38 |
93.5 |
26 |
21 |
35 |
|
HUP240M12 |
HUP240-12 |
13 |
38 |
93.5 |
|||
|
HUP240M14 |
HUP240-14 |
15 |
38 |
93.5 |
|||
|
HUP240M16 |
HUP240-16 |
17 |
38 |
93.5 |
|||
|
HUP240M20 |
HUP240-20 |
21 |
38 |
93.5 |
|||
|
HUP300M12 |
HUP300-12 |
13 |
43 |
111 |
29.5 |
23.5 |
44 |
|
HUP300M14 |
HUP300-14 |
15 |
43 |
111 |
|||
|
HUP300M16 |
HUP300-16 |
17 |
43 |
111 |
|||
|
HUP300M20 |
HUP300-20 |
21 |
43 |
111 |
|||
|
HUP400M12 |
HUP400-12 |
13 |
49.5 |
114 |
34 |
27 |
44 |
|
HUP400M14 |
HUP400-14 |
15 |
49.5 |
114 |
|||
|
HUP400M16 |
HUP400-16 |
17 |
49.5 |
114 |
|||
|
HUP400M20 |
HUP400-20 |
21 |
49.5 |
114 |
|||
|
|
|||||||
