PART NO. 规格/编码 |
ITEM NO. 品名型号 |

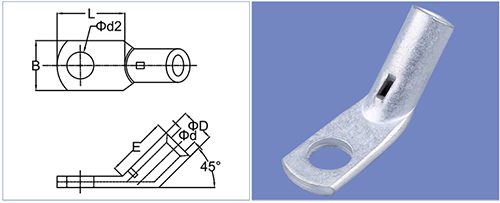

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
LYF10M6D45 |
LYF45°10-6 |
6.5 |
13 |
18 |
8 |
5 |
19 |
|
LYF10M8D45 |
LYF45°10-8 |
8.4 |
13.5 |
20.5 |
8 |
5 |
19 |
|
LYF16M6D45 |
LYF45°16-6 |
6.5 |
13 |
18 |
9 |
6 |
23 |
|
LYF16M8D45 |
LYF45°16-8 |
8.4 |
13.5 |
20.5 |
9 |
6 |
23 |
|
LYF25M6D45 |
LYF45°25-6 |
6.5 |
16 |
18 |
11 |
8 |
24 |
|
LYF25M8D45 |
LYF45°25-8 |
8.4 |
16 |
20.5 |
11 |
8 |
24 |
|
LYF25M10D45 |
LYF45°25-10 |
10.5 |
17 |
25 |
11 |
8 |
24 |
|
LYF35M6D45 |
LYF45°35-6 |
6.5 |
18 |
18 |
13 |
9 |
30 |
|
LYF35M8D45 |
LYF45°35-8 |
8.4 |
18 |
20.5 |
13 |
9 |
30 |
|
LYF35M10D45 |
LYF45°35-10 |
10.5 |
18 |
25 |
13 |
9 |
30 |
|
LYF50M8D45 |
LYF45°50-8 |
8.4 |
21 |
26 |
14.5 |
11 |
31 |
|
LYF50M10D45 |
LYF45°50-10 |
10.5 |
21 |
30 |
14.5 |
11 |
31 |
|
LYF50M12D45 |
LYF45°50-12 |
13 |
21 |
32 |
14.5 |
11 |
31 |
|
LYF70M8D45 |
LYF45°70-8 |
8.4 |
25 |
26 |
17 |
13 |
35 |
|
LYF70M10D45 |
LYF45°70-10 |
10.5 |
25 |
30 |
17 |
13 |
35 |
|
LYF70M12D45 |
LYF45°70-12 |
13 |
25 |
32 |
17 |
13 |
35 |
|
LYF95M10D45 |
LYF45°95-10 |
10.5 |
29 |
30 |
20 |
15 |
40 |
|
LYF95M12D45 |
LYF45°95-12 |
13 |
29 |
32 |
20 |
15 |
40 |
|
LYF95M16D45 |
LYF45°95-16 |
17 |
29 |
36 |
20 |
15 |
40 |
|
LYF120M10D45 |
LYF45°120-10 |
10.5 |
32 |
30 |
22 |
17 |
43 |
|
LYF120M12D45 |
LYF45°120-12 |
13 |
32 |
32 |
22 |
17 |
43 |
|
LYF120M16D45 |
LYF45°120-16 |
17 |
32 |
36 |
22 |
17 |
43 |
